The GeekVape B Series Coil family is a versatile, interchangeable mesh coil platform with wide compatibility supporting DTL, RDL, and MTL vaping styles thanks to various resistance, wattage, and airflow options.
The GeekVape B Series Coil platform is the interchangeable coil family used in the brand's pod mod and compact tank systems. The mesh atomization structure creates a more balanced heat distribution across the coil surface, helping to provide a fast response, consistent vapor production, and maintained flavor transfer.

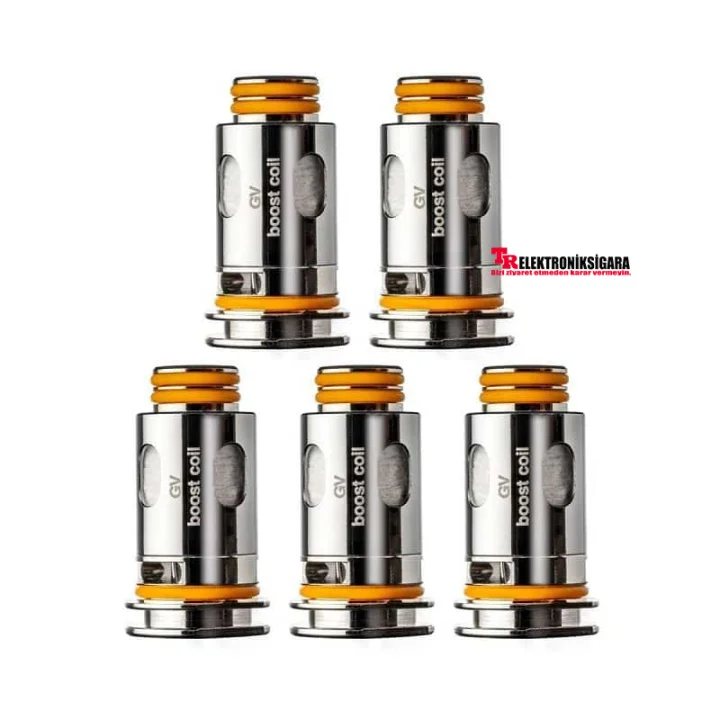

A B Boost coil option designed for more open airflow and higher power usage.
A balanced DTL option between dense vapor and more controlled power usage.
A resistance option aimed at RDL usage with more controlled airflow and medium power.
A coil option tailored for lower power and a controlled RDL usage character.
A B Series MTL coil option developed for lower wattage and a tighter draw.
The lower-power focused and tighter MTL usage option of the B Series family.
On GeekVape's current product page, the 0.15Ω B Boost coil is listed specifically for the Aegis Force Pod.
As coil resistance, operating power, and airflow change, the e-liquid character used must also match accordingly. GeekVape's current B Series data classifies resistance groups as follows.
GeekVape specifies high airflow and Freebase ≤3 mg usage for this coil group.
The manufacturer specifies Freebase ≤9 mg or Nic Salt ≤30 mg usage for this group.
These are B Series coil options aimed at lower wattage and MTL usage. GeekVape highlights Nic Salt usage in this group.

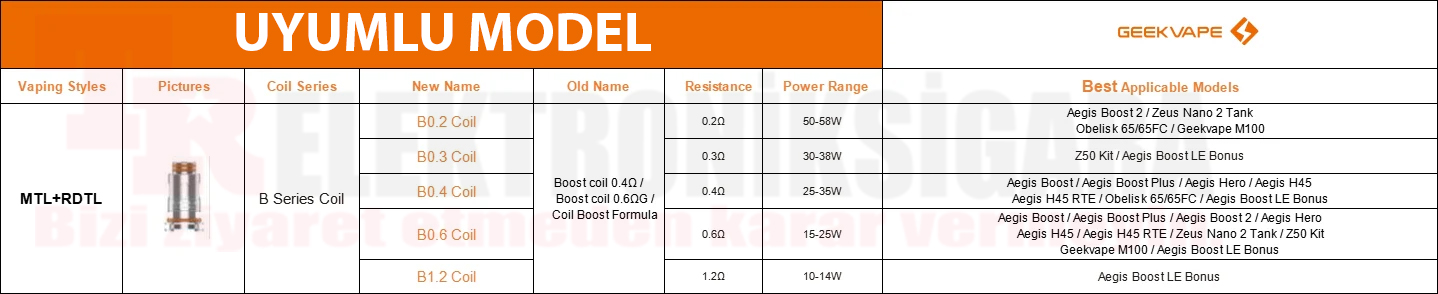

The B Series Coil platform has been used in numerous GeekVape pod and tank systems over time. Since not all coil resistances are supported by every device, the power capacity of the device should also be checked.
| Coil | Resistance | Wattage | General Usage |
|---|---|---|---|
| B0.2 | 0.2Ω | 50–58W | DTL |
| B0.3 | 0.3Ω | 30–38W | DTL |
| B0.4 | 0.4Ω | 25–35W | RDL |
| B0.6 | 0.6Ω | 15–25W | RDL |
| B0.8 | 0.8Ω | 12–16W | MTL |
| B1.2 | 1.2Ω | 8–12W | MTL |

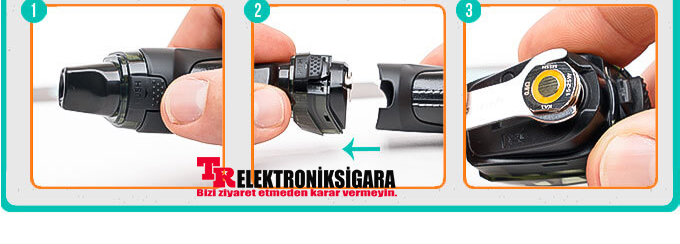

Turn off the device and remove the cartridge or tank from the device.
Pull the used B Series Coil out from the cartridge base.
Insert the new coil making sure it is fully seated in its slot.
After filling the cartridge with e-liquid, wait before first use.
