5.5 ML • TPP-DM COIL • MAGNETIC POD TANK

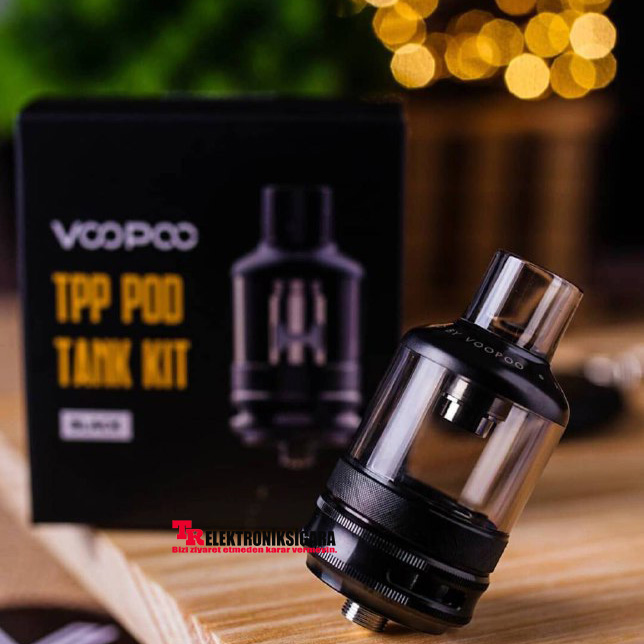

VOOPOO TPP Tank Atomizer 5.5ML
Powerful DL experience with a high-performance TPP-DM coil system, magnetic pod connection, and dual-channel adjustable airflow.
⚙
TPP-DM Coil
High-power mesh coil system
◆
5.5 ml Capacity
Large PCTG e-liquid reservoir
⇅
Magnetic Connection
Easily detachable pod tank
∼
Dual Air Channels
Adjustable 360-degree airflow
VOOPOO TPP Pod Tank
VOOPOO TPP Pod Tank is a modular coil atomizer that combines a 5.5 ml capacity PCTG cartridge with a standard 510-connected metal atomizer base. Operating with TPP-DM Series coils, the tank is designed for intense flavor and strong vapor production at high wattage values.

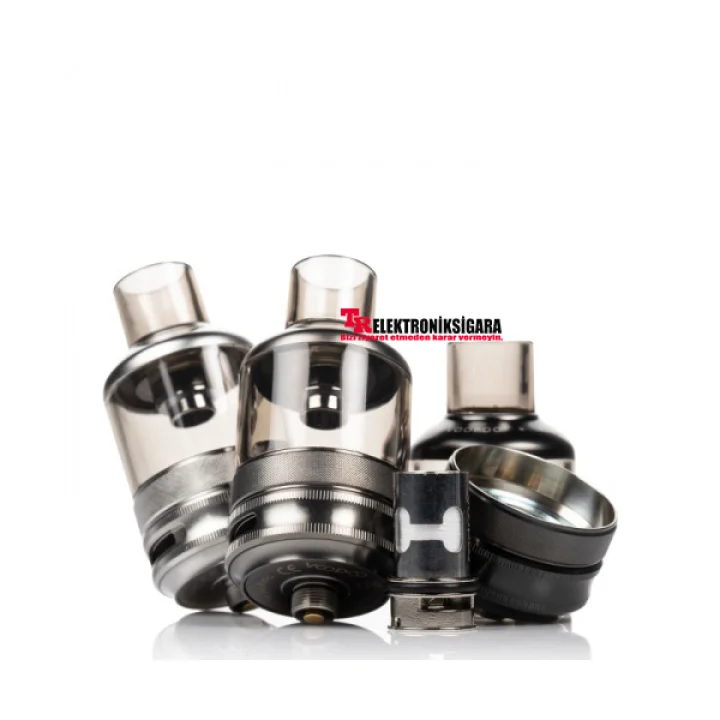

The pod cartridge connects magnetically to the airflow control base. This structure allows the cartridge to be easily separated from the metal base during e-liquid refilling or coil replacement. Thanks to the press-fit coil system, coils are installed by pressing them directly into the bottom section of the cartridge without any threading.
The dual air channel control ring on the metal base helps precisely adjust the airflow volume. When the air channels are fully opened, an open DL draw producing high vapor can be achieved, and when restricted, a more controlled DL experience can be obtained.
VOOPOO TPP Tank Features

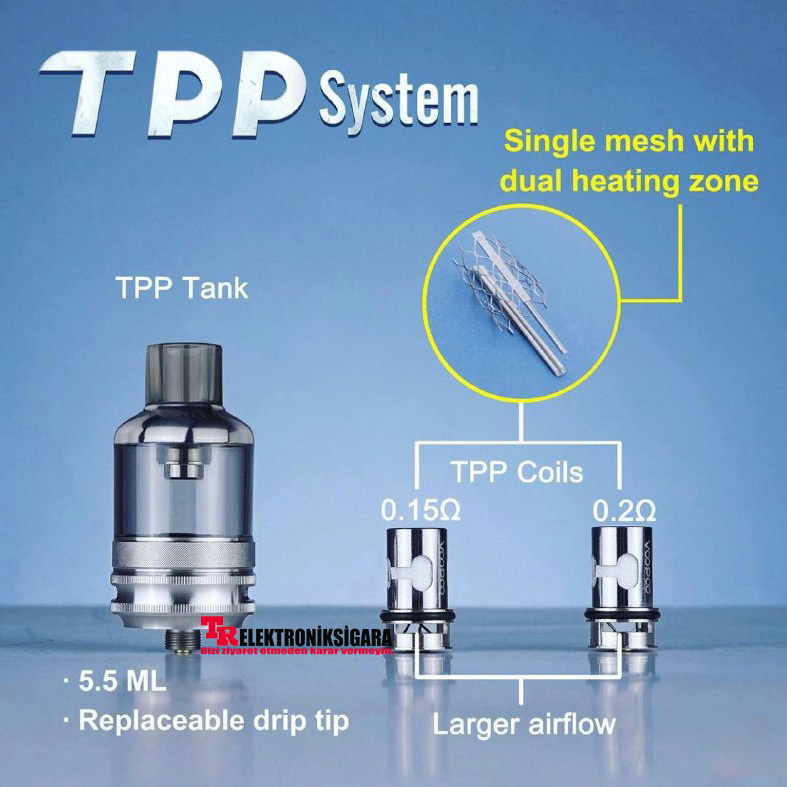

TPP Mesh Technology
Fast response, intense flavor, and high vapor with a large heating surface.
Bottom Fill System
Practical e-liquid refilling via a wide fill channel with a silicone plug.
510 Mod Compatibility
Use with mods featuring standard 510 connections and providing sufficient power.
Technical Specifications
Brand: VOOPOO
Model: TPP Pod Tank
Atomizer Type: Coil atomizer with magnetic cartridge
E-Liquid Capacity: 5.5 ml
Cartridge Material: Durable PCTG
Atomizer Base: Metal alloy
Filling System: Bottom fill with silicone plug
Compatible Coil Series: VOOPOO TPP-DM Coil
Coil Installation: Plug-and-play press-fit system
Cartridge Connection: Magnetic connection
Airflow: Adjustable dual-channel bottom airflow
Airflow Control: 360-degree rotatable AFC ring
Mouthpiece: Wide-bore fixed Drip Tip
Mod Connection: Standard 510 connection
Usage Style: Open DL
Compatible TPP-DM Coil Options
| Coil |
Usage |
Power Range |
| TPP-DM1 0.15Ω |
DL |
60-80W |
| TPP-DM2 0.2Ω |
DL |
40-60W |
| TPP-DM3 0.15Ω |
DL |
80-100W |
| TPP-DM4 0.3Ω |
DL |
32-40W |
Compatibility Information: The TPP Pod Tank must be used with TPP-DM Series coils. Older generation VOOPOO PnP coils are not directly compatible with the coil slot of the TPP cartridge.
New Coil Usage Recommendations
✓ Press the new coil firmly into the bottom section of the cartridge leaving no gaps.
✓ Wait 10-15 minutes after filling the cartridge before first use.
✓ Start vaping at the lower end of the wattage range specified on the coil.
✓ Gradually increase the power based on flavor and vapor performance.
✓ Verify that the silicone plug is completely closed after refilling.
✓ Do not let the e-liquid level inside the cartridge drop below the coil inlet ports.
Important: TPP-DM coils are low-resistance DL coils intended for high-wattage use. They are not recommended for use with high-nicotine salt e-liquids. The mod being used must be able to safely supply the power required for the chosen coil.

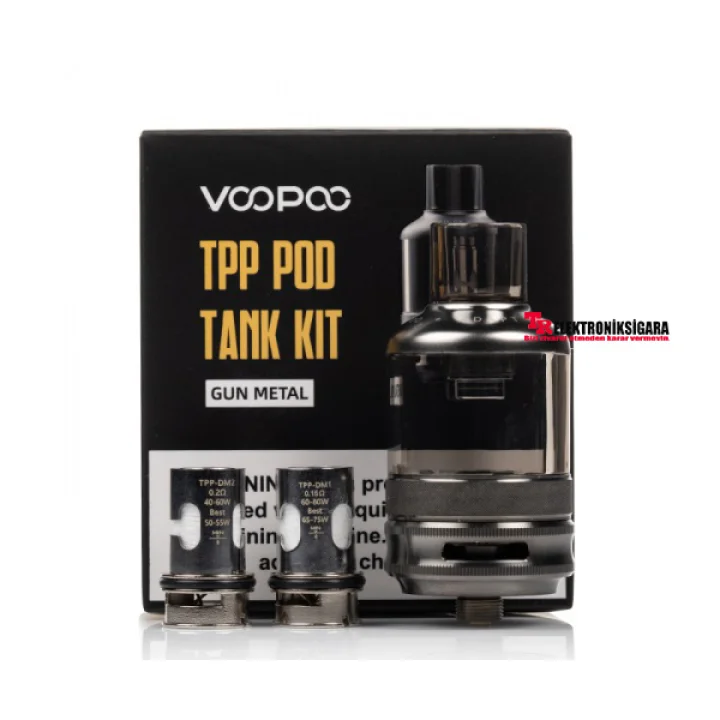

Package Contents
1 × VOOPOO TPP Pod Tank Atomizer (5.5 ml)
1 × TPP-DM1 0.15Ω Coil (60-80W)
1 × TPP-DM2 0.2Ω Coil (40-60W)
1 × User Manual
Frequently Asked Questions
Which coils does the TPP Tank use?
It can be used with VOOPOO TPP-DM1, DM2, DM3, and DM4 coil options.
Do standard PnP coils fit this tank?
No. The structure of standard PnP coils differs from the coil slot of the TPP cartridge.
What is the tank capacity in milliliters?
The standard TPP Pod Tank cartridge has an e-liquid capacity of 5.5 ml.
Is the TPP Tank suitable for MTL vaping?
No. TPP-DM coils and wide air channels are intended for open DL usage.
Which mod devices can it be used with?
It can be used with mod devices that feature a standard 510 connection and can safely provide the wattage required for the selected TPP-DM coil.
