What is a Clearomizer, How Does It Work, and How to Fill It?
A clearomizer is a type of atomizer that combines a clear tank for storing e-liquid, a pre-built coil, a mouthpiece, and connection components into a single system. Today, these products are mostly referred to as "pre-built coil tanks" or simply "tanks."
The word clearomizer is a portmanteau of the English words clear and atomizer. "Clear" refers to the transparent tank, while "atomizer" denotes the component that heats the e-liquid to produce vapor/aerosol.
The most prominent feature of early clearomizer models was that users could view the remaining e-liquid level from the outside. Although many modern atomizers with glass tanks and replaceable pre-built coils operate on the same technical principle today, the term clearomizer has largely been replaced by expressions like "vape tank" or "pre-built coil atomizer."
What Parts Make Up a Clearomizer?
A clearomizer consists of more than just a mouthpiece and e-liquid reservoir. While exact components vary by model, a modern pre-built coil tank typically includes the following parts:
Mouthpiece
Also referred to as a drip tip, this is the section through which vapor reaches the user.
Tank
The glass or durable plastic section where e-liquid is stored.
Pre-Built Coil
A replaceable component containing the heating wire and wicking cotton together.
Airflow Channel
The section that regulates draw tightness and the amount of airflow reaching the coil.
Fill Cap
Allows refilling from the top, side, or—in some older models—the bottom.
Base Connection
The contact point that connects the tank to the e-cigarette mod.
How Does a Clearomizer Work?
A clearomizer operates through the interaction between the tank, cotton, coil, and battery. E-liquid inside the tank is absorbed by the cotton inside the coil head. When the user presses the firing button, the battery delivers electricity to the coil.
Vapor production depends on coil resistance, applied wattage, airflow settings, e-liquid ratio, and overall device design—not the term clearomizer itself. Consequently, not every clearomizer is a high-power DL tank. There are also clearomizer models designed with tighter draws specifically for MTL vaping.
What Is the Difference Between a Clearomizer and an RTA?
With clearomizers or pre-built coil tanks, users simply insert a pre-made coil head to use the device. With RTA atomizers, users must build their own coils and wick them manually or install pre-wrapped coils onto the build deck.
| Feature | Clearomizer / Pre-built coil tank | RTA Atomizer |
|---|---|---|
| Coil Structure | Pre-built and replaceable coil heads | User-installed wire and cotton builds |
| Ease of Use | Easier and plug-and-play | Requires technical knowledge |
| Maintenance | Coil replacement and tank cleaning | Wire, cotton, and deck maintenance |
| Customization | Limited to available factory coil options | Fully customizable wire, wraps, and cotton |

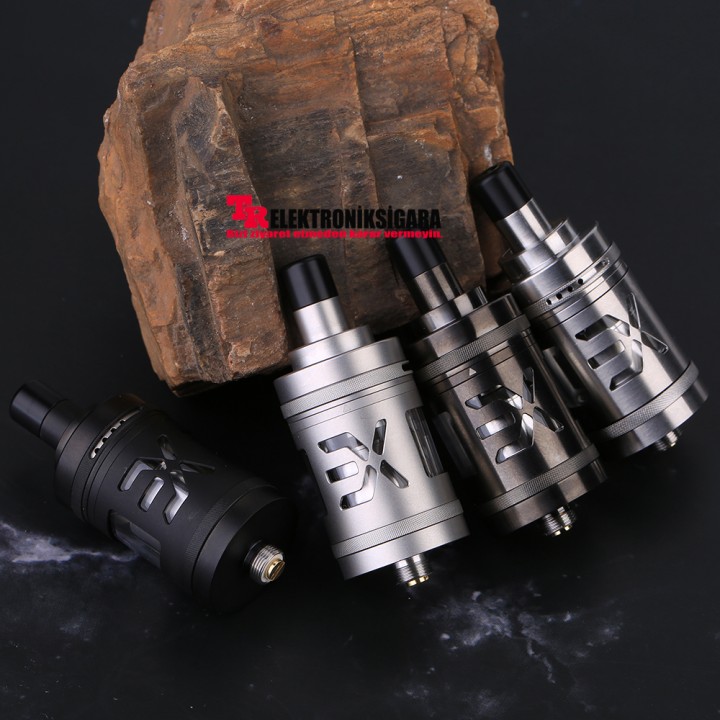

The Expromizer V5 shown above is an RTA atomizer requiring user-built coils, not a clearomizer.
How to Fill a Clearomizer?
Filling methods vary depending on the model. Some tanks feature slide-to-open top caps, others unscrew, and older models may fill from the bottom. Always check your specific product's design before filling.
General Filling Steps
How to Prime a New Coil?
When installing a new coil in a clearomizer, the cotton must never be heated dry. Apply a few drops of e-liquid directly onto the exposed cotton wick ports on the coil. Next, install the coil, fill the tank, and let it sit for about 10–15 minutes.
If using a variable-wattage device, start your first few puffs at the lower end of the coil's recommended wattage range, then gradually increase it to preserve coil life.
How Much E-Liquid Does a Clearomizer Hold?
The notion that clearomizers only hold 1.5–3 ml of liquid is outdated. Tank capacities vary by model, region, and local regulations, with options ranging from 2 ml, 3 ml, 4 ml, 5 ml, or higher.
The same tank model may also be offered in different capacity variants depending on regional markets—for example, a 2 ml TPD-compliant version alongside a 4 ml or larger standard edition.
Advantages of Using a Clearomizer
✓ Transparent design allows easy checking of remaining e-liquid level.
✓ Eliminates the need for manual coil building or wrapping.
✓ Pre-built coil replacement is quick and straightforward.
✓ Available in diverse options for MTL, RDL, or DL vaping styles.
✓ Models with adjustable airflow allow a customizable draw.
✓ Only the spent coil head needs replacement rather than the whole tank.
Disadvantages of Using a Clearomizer
✕ Requires recurring purchases of compatible pre-built coils.
✕ Coils are not cross-compatible across all tank brands/models.
✕ Worn O-rings or cracked glass can cause leaks.
✕ Flavor ghosting from previous e-liquids may linger on the cotton.
✕ Tank usability depends on ongoing manufacturer coil production.
✕ Offers less control over build specs compared to RTA systems.

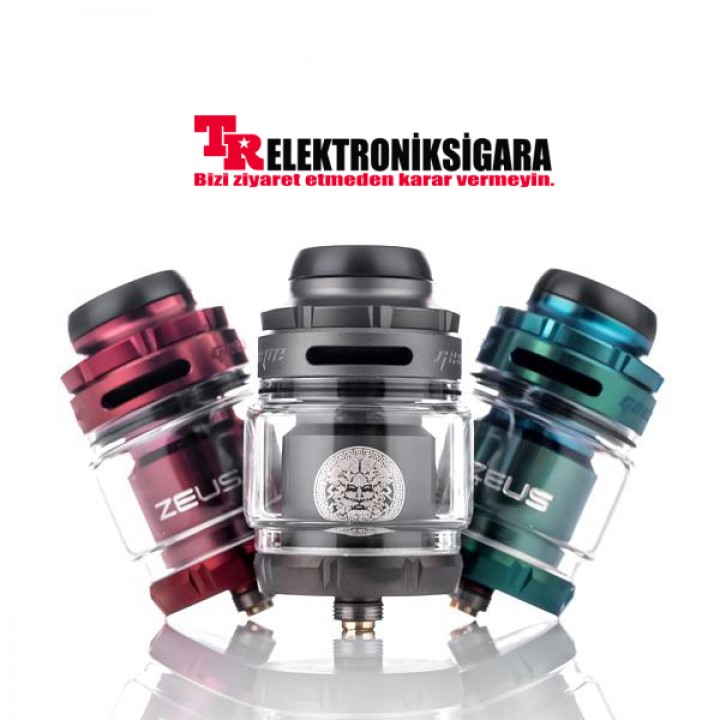

The GeekVape Zeus Mesh is an RTA atomizer using mesh wire builds, not a pre-built coil clearomizer.
What to Consider When Choosing a Clearomizer?
- Vaping Style: Preference for MTL, RDL, or DL draw styles
- Coil Options: Compatible resistance values and recommended wattage ranges
- Coil Availability: Ready availability of replacement coil stock
- Tank Diameter: Ensures a flush fit on your chosen mod
- Threading: Standard 510-thread compatibility with your device
- Fill System: Top-fill or bottom-fill convenience
- Airflow Control: Ability to adjust draw tightness
- Capacity: E-liquid capacity suited to your daily usage
- Spare Parts: Availability of replacement glass tubes and O-rings
How to Maintain a Clearomizer?
Tank components should be cleaned regularly, wiping away any excess e-liquid accumulated in the coil base or airflow vents. Never submerge electronic parts or pre-built coils in water. Ensure washable tank components are completely dry before reassembling.
- Persistent burnt or harsh taste
- Noticeable reduction in flavor intensity
- Decreased vapor production
- E-liquid rapidly darkening inside the tank
- Continued gurgling or leaking despite cleaning
Frequently Asked Questions
Are a clearomizer and an atomizer the same thing?
A clearomizer is a sub-type of atomizer. Every clearomizer is an atomizer, but not every atomizer is a clearomizer.
Can you rebuild a clearomizer coil?
Generally no. Clearomizer systems rely on factory-manufactured compatible coil heads.
Why is my clearomizer leaking?
A loose coil, damaged O-rings, improper filling, an expired coil, or thin/incompatible e-liquid can cause leakage.
Does a clearomizer produce high vapor?
It depends on the model. MTL clearomizers produce lower vapor, while sub-ohm pre-built coil tanks generate significantly larger vapor clouds.
