A compact pod mod kit developed with 40W adjustable power, a 1500mAh built-in battery, a 0.96-inch color TFT screen, and separate RPM/Nord cartridge options.

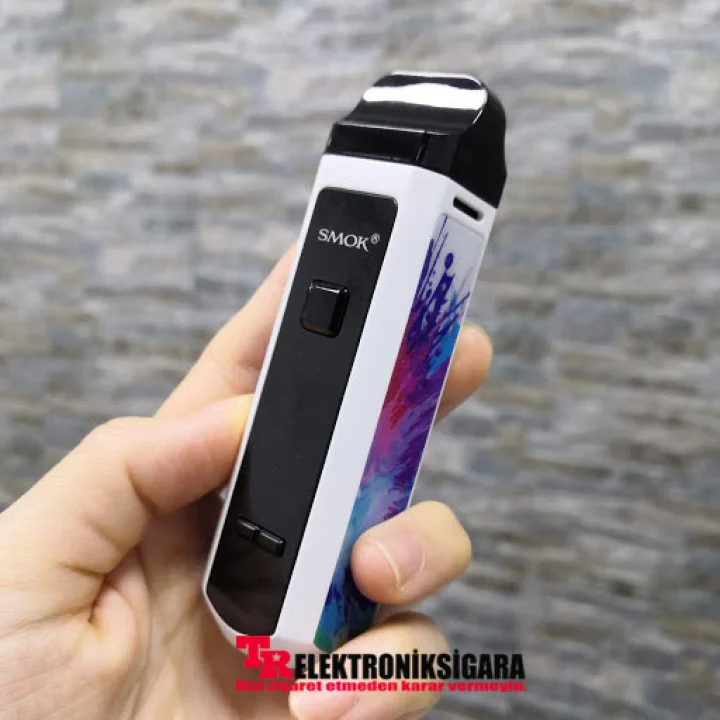

SMOK RPM40 is a compact pod mod device that combines a portable cube-shaped body with adjustable wattage capability. Thanks to the IQ-R chipset, it delivers a power output adjustable between 1–40W and a firing speed of up to 0.001 seconds.

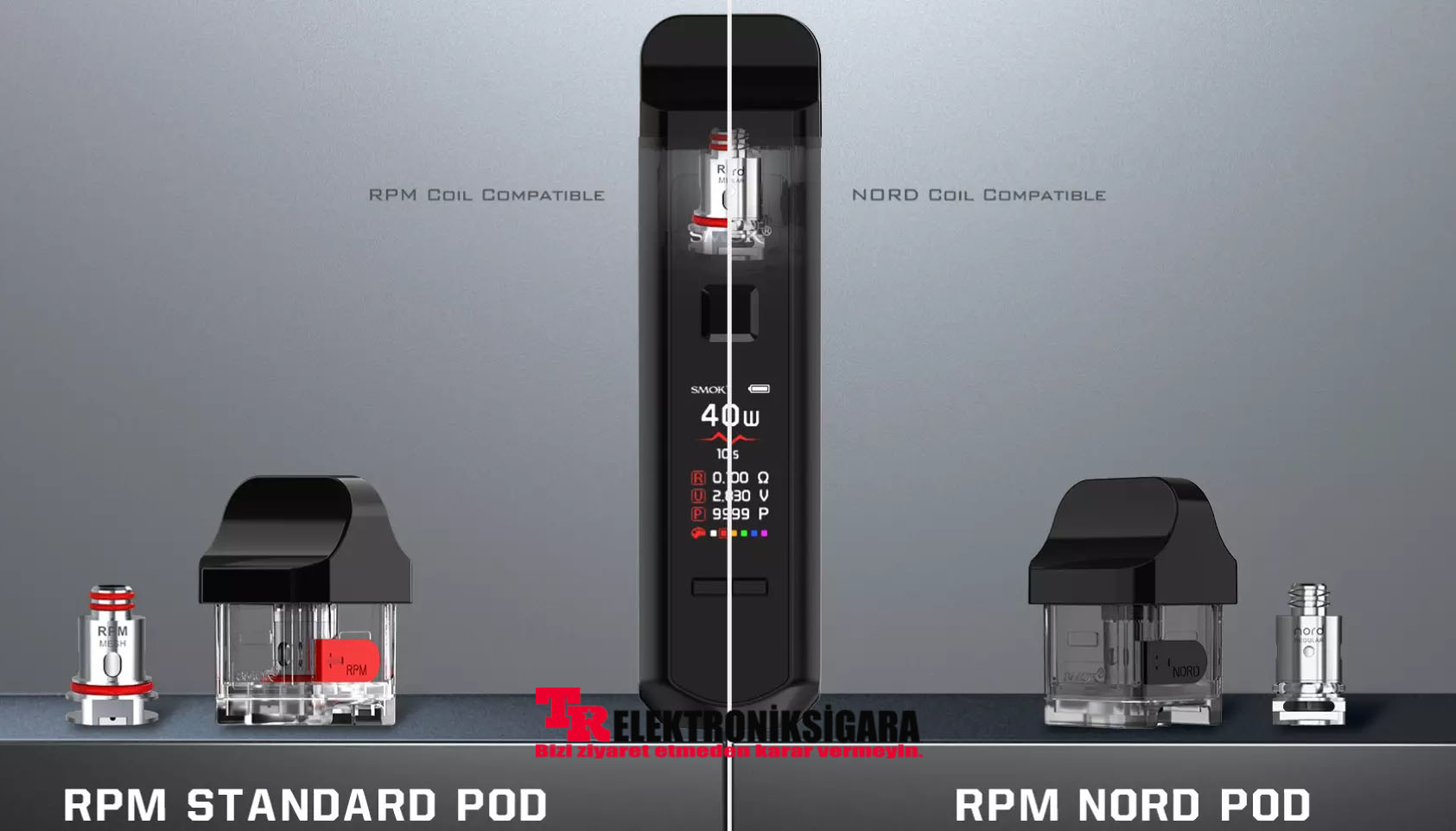

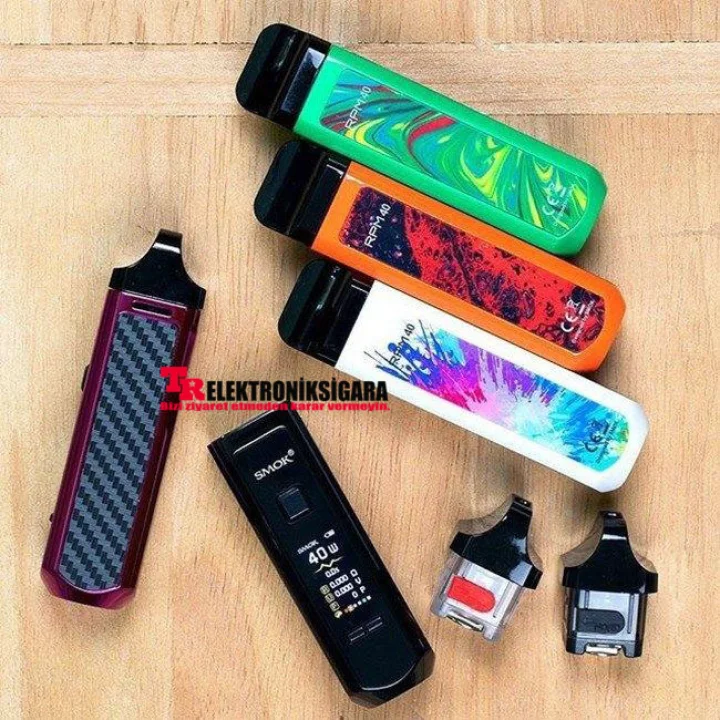

The kit includes two different cartridges: one utilizing original RPM coils and the other using Nord coils. This allows users to switch between looser or tighter vaping options by selecting the appropriate cartridge and coil.
Power can be adjusted between 1–40W depending on the installed coil.
Features a 1500mAh capacity built-in battery inside the compact body.
The RPM and Nord cartridges included in the package use different coil series.

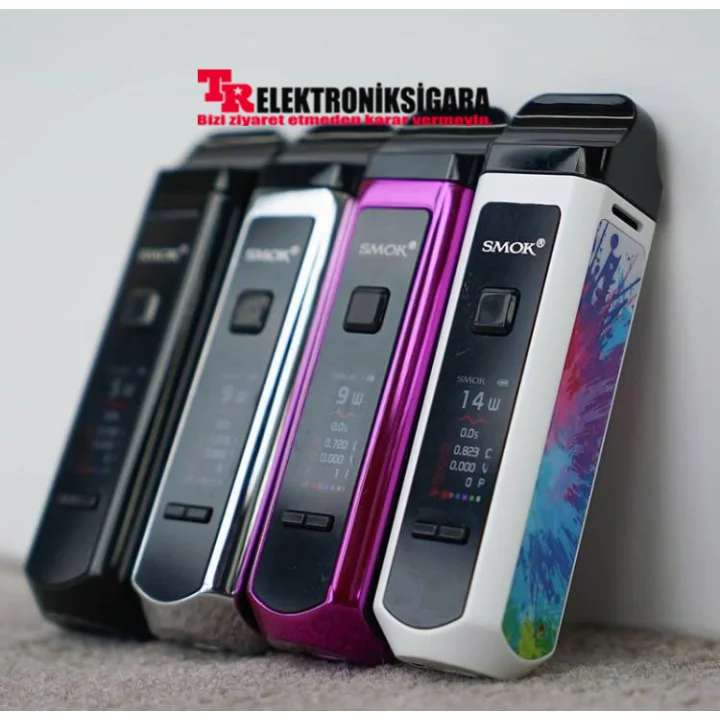

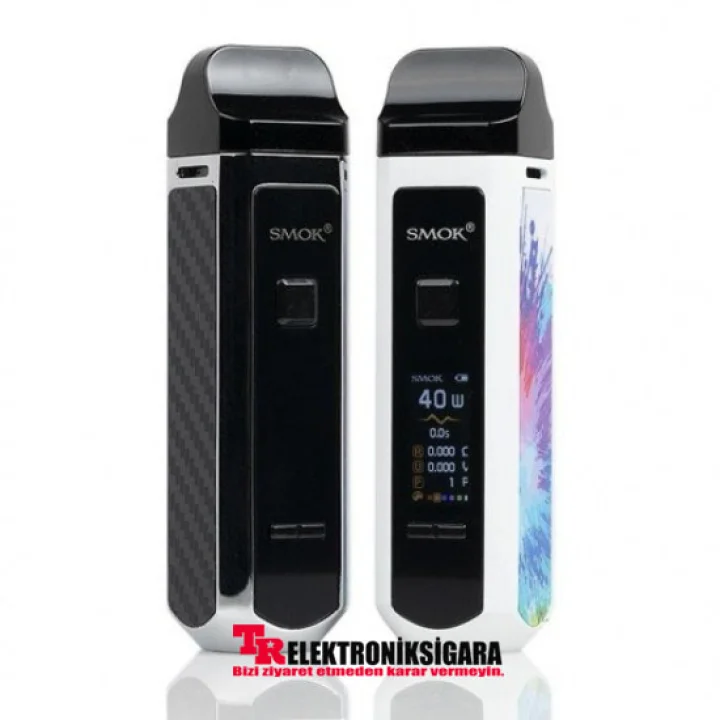

0.96-inch screen displaying wattage, resistance, voltage, battery, and puff information.
Capacity: 4.3 ml
Box Coil: RPM Mesh 0.4Ω
Compatible Series: Original SMOK RPM coils
Features "RPM" marked on the cartridge filling cap. Nord or next-gen RPM 2/3/4 coils cannot fit into this cartridge.
Capacity: 4.5 ml
Box Coil: Nord DC 0.6Ω
Compatible Series: SMOK Nord coils
Features "NORD" marked on the cartridge filling cap. Original RPM coils cannot fit into this cartridge.
| Model | SMOK RPM40 Kit |
|---|---|
| Dimensions | 99 × 25 × 25 mm |
| Approximate Weight | 99 g |
| Chipset | SMOK IQ-R |
| Battery | 1500mAh built-in battery |
| Power Range | 1–40W |
| Output Voltage | 0.5–4.1V |
| Resistance Range | 0.2–2.5Ω |
| Firing Speed | Approx. 0.001 seconds |
| Display | 0.96-inch color TFT display |
| RPM Cartridge Capacity | 4.3 ml |
| Nord Cartridge Capacity | 4.5 ml |
| TPD Cartridge Capacity | 2 ml |
| Filling System | Side filling |
| Charging Port | Micro-USB |
| Charging Voltage | 5V |
| Max Charging Current | 0.88A |
Check whether the cartridge you are using is the RPM or Nord model.
Fully insert the compatible coil model into the bottom section of the cartridge.

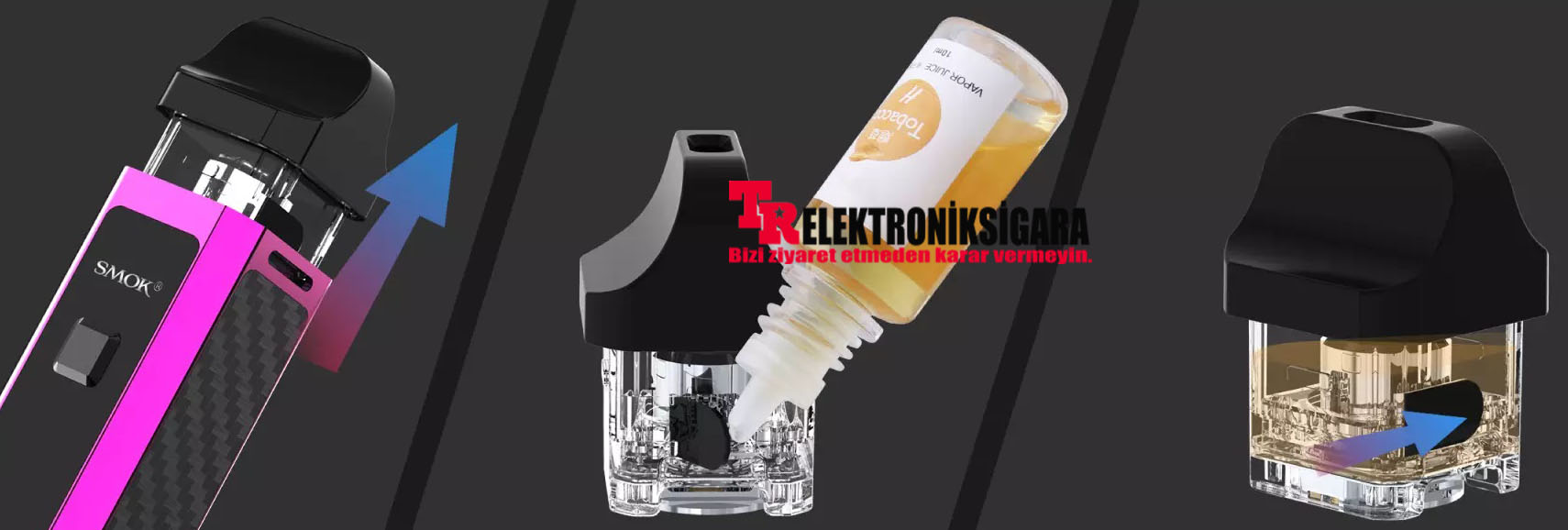

Remove the cartridge from the device and open the silicone side-filling cap.
Add e-liquid without overfilling the cartridge and close the silicone cap securely.
Wait for 10–15 minutes to allow the new coil to become fully saturated.
Start using the device at the lower end of the coil's recommended wattage range.
The RPM Standard cartridge uses old/original RPM coils, while the Nord cartridge uses SMOK Nord coils. The coil used must match the cartridge model.
No. These series are physically different. Only the original RPM coil series must be used in the RPM40's RPM cartridge.

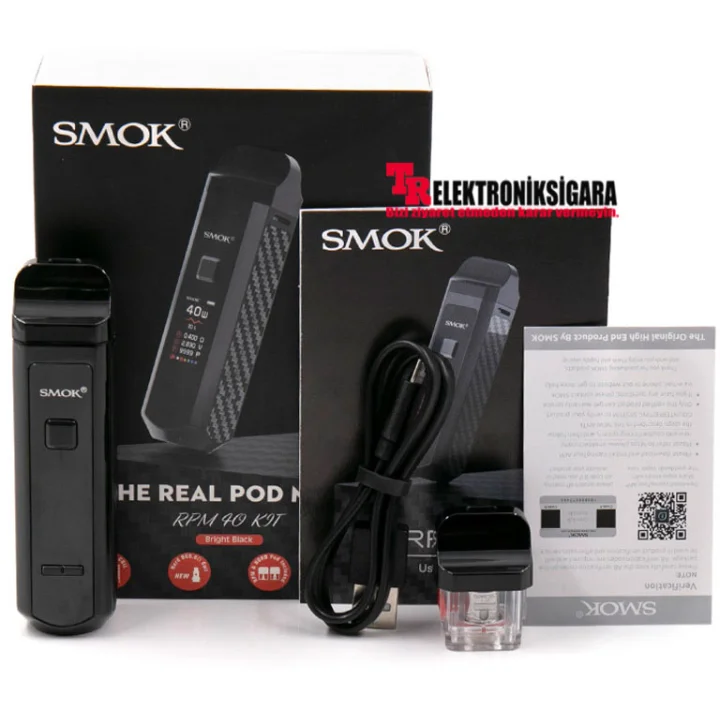

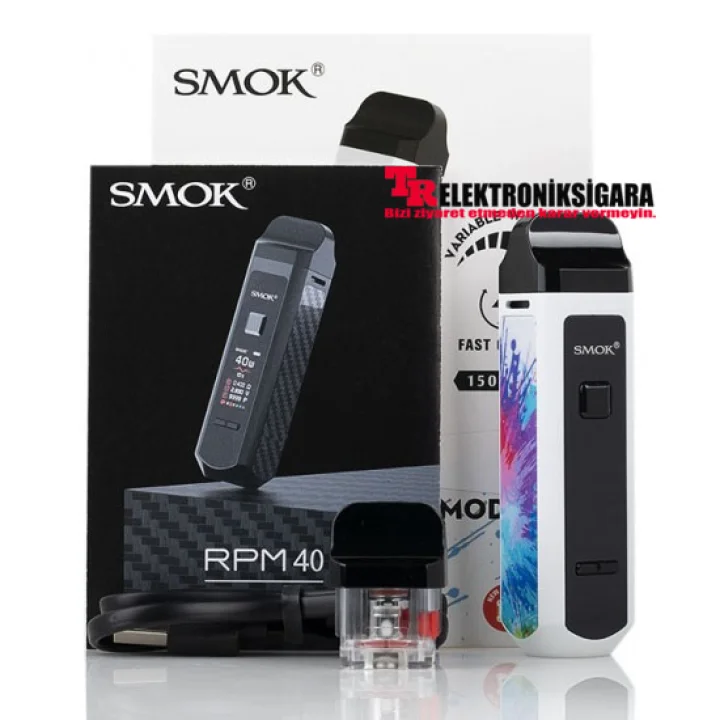

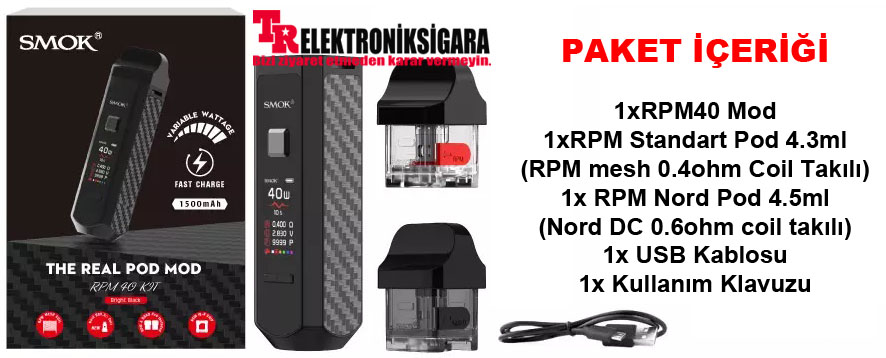

The kit comes with two separate cartridges. The RPM Mesh 0.4Ω coil is pre-installed in the RPM cartridge, and the Nord DC 0.6Ω coil is pre-installed in the Nord cartridge.
No. SMOK RPM40 uses an older generation Micro-USB connection, and the maximum charging current is specified as 0.88A.
It is recommended to wait 10–15 minutes after filling the cartridge to allow the coil cotton to become fully saturated.
