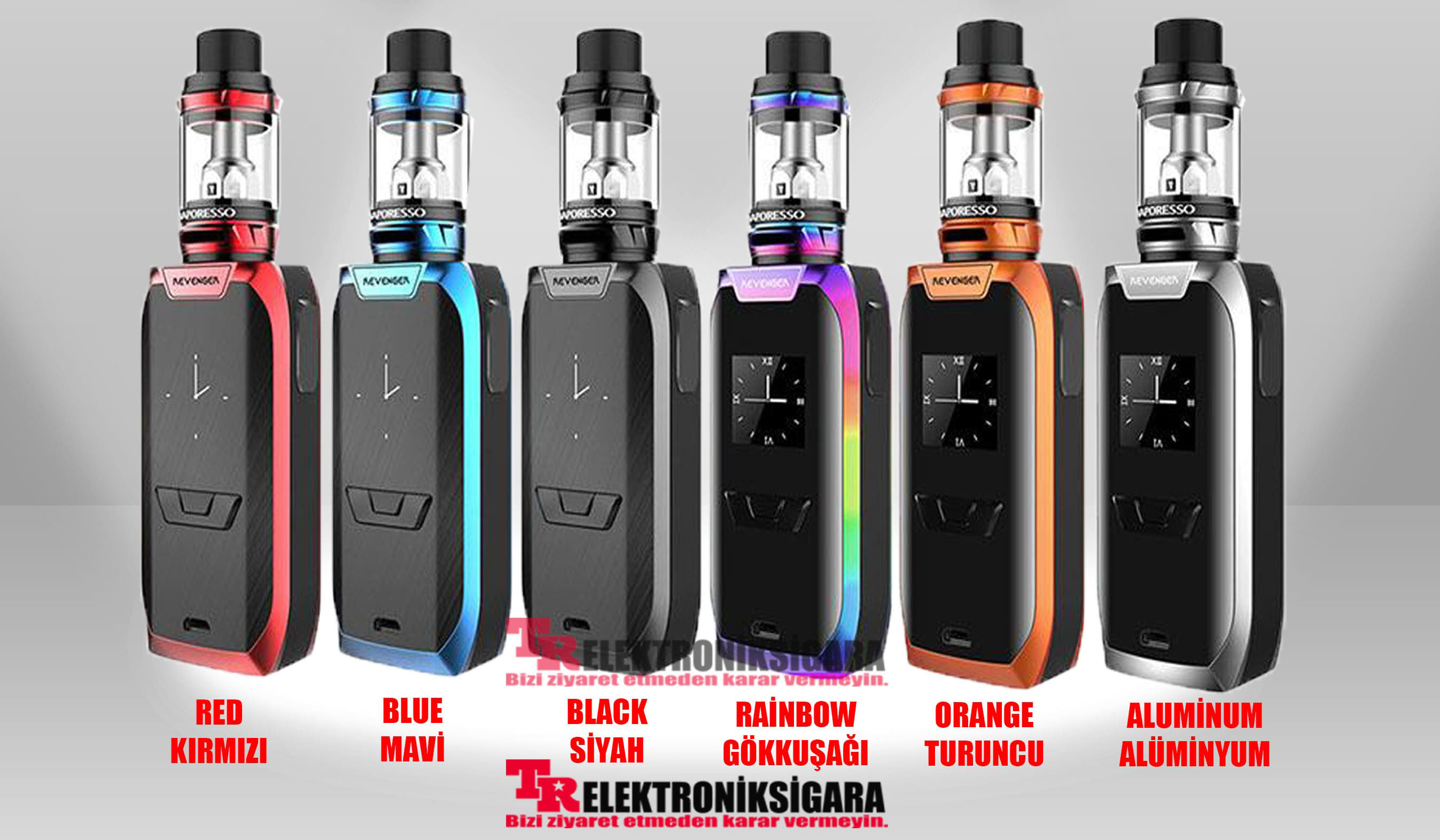

The Vaporesso Revenger Kit is a high-performance electronic cigarette kit combining a 220W maximum output, dual 18650 batteries, the OMNI Board 2.0 chipset, and a 5 ml capacity NRG Tank.
The Revenger Mod utilizes the OMNI Board 2.0 platform developed by Vaporesso. With operational choices such as variable wattage, temperature control, TCR, CCW, CCT, and bypass, it adapts to different coil and usage preferences.

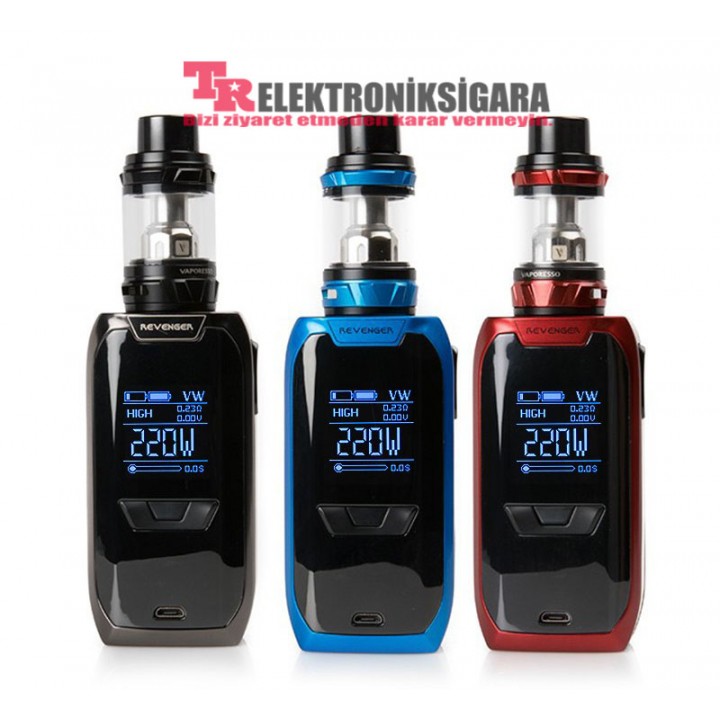

The device's 0.96-inch OLED screen makes it easy to track wattage, resistance, voltage, battery status, temperature, and puff information through a single interface. It is controlled via physical fire and adjustment buttons.
Included in the kit, the NRG Tank is specially developed for DTL (Direct-to-Lung) use with its 5 ml standard liquid capacity, top-slide filling system, adjustable bottom airflow, and wide Vaporesso GT coil support.
The 5–220W adjustable output range allows usage with compatible atomizers and coils of varying resistances.
Provides control over advanced working modes such as VW, VT, TCR, CCW, CCT, RTC, and bypass.

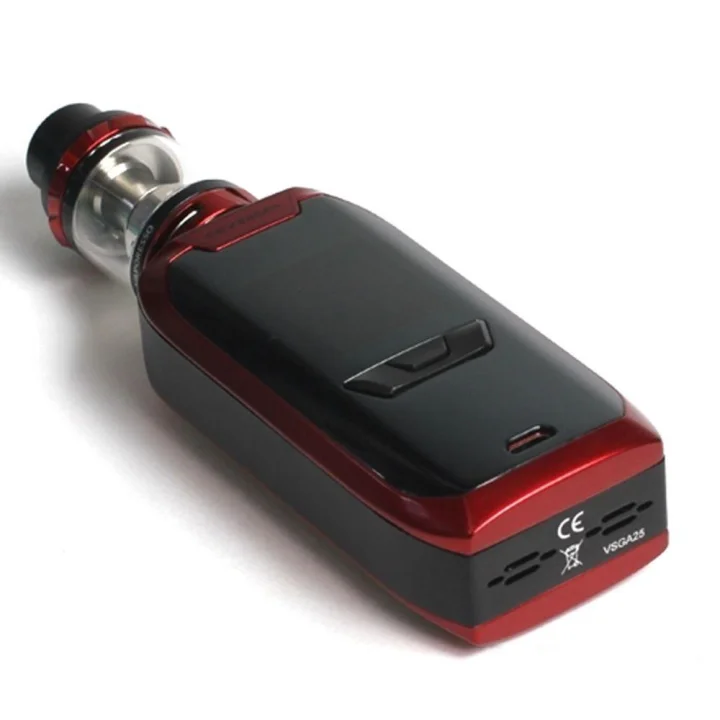

Operates with two interchangeable high-amp 18650 batteries. Batteries are not included in the package.

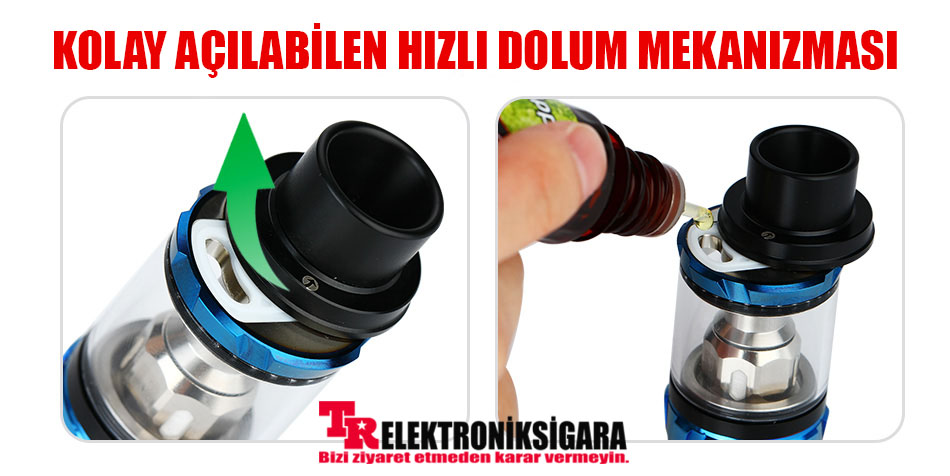

Simplifies daily refilling thanks to its large liquid capacity and sliding top fill cap.
Supports different power and vaping preferences with GT2, GT4, GT6, GT8, GT Meshed, and compatible GT CCELL options.
The dual-channel bottom airflow ring allows you to adjust vapor density and draw tightness to personal preference.
| GT2 0.40Ω | 40–80W; manufacturer's recommended ideal range is 55–65W |
|---|---|
| GT4 0.15Ω | 30–70W; manufacturer's recommended ideal range is 45–60W |
| GT6 0.20Ω | 40–100W; manufacturer's recommended ideal range is 70–90W |
| GT8 0.15Ω | 50–110W; manufacturer's recommended ideal range is 60–80W |
| GT Meshed 0.18Ω | 50–85W; manufacturer's recommended ideal range is 65–80W |
| GT CCELL 0.50Ω | 25–35W |
| GT CCELL2 0.30Ω | 35–40W |

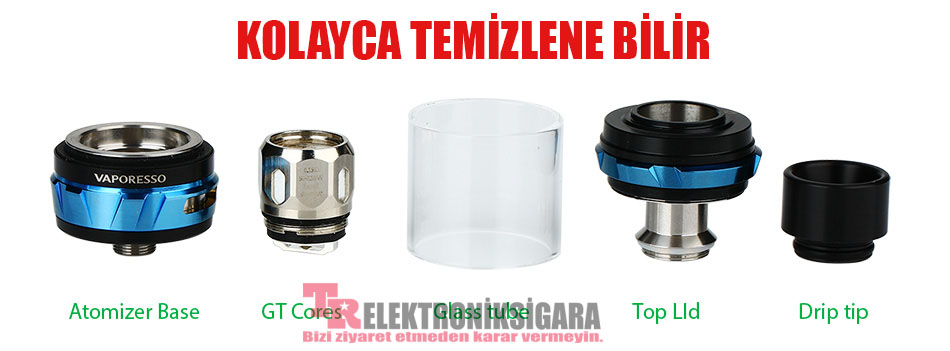

The NRG Tank's glass, coil section, base, and drip tip can be disassembled for cleaning or part replacement. When replacing the glass, make sure the o-rings are in the correct position and undamaged.
After cleaning, the tank must be completely dried; when installing the coil, connection points should not be forced, and parts should not be over-tightened.
| Chipset | Vaporesso OMNI Board 2.0 |
|---|---|

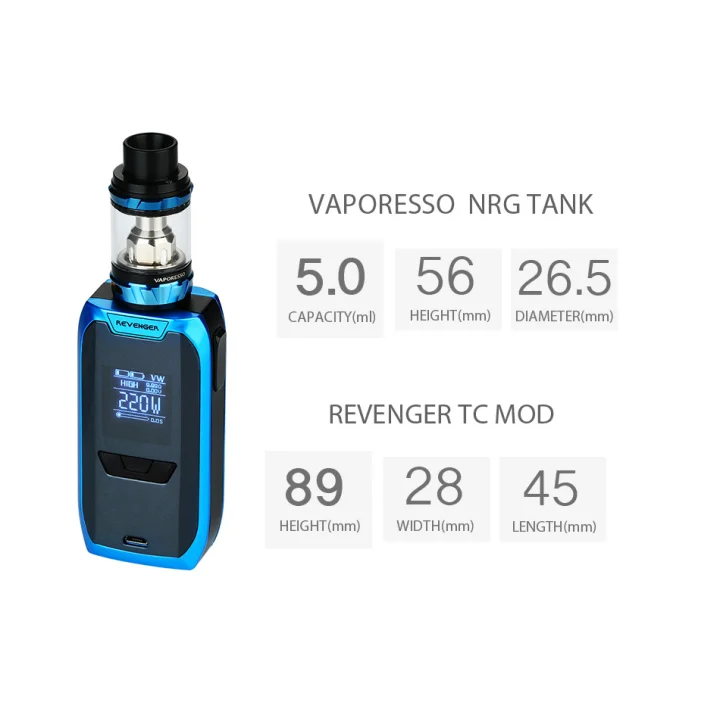

| Mod dimensions | Approx. 89 × 45 × 28 mm |
| Power range | 5–220W |
| Output voltage | 0–8.5V |
| Resistance range | 0.05–5.0Ω |
| Temperature range | 100–315°C / 200–600°F |
| TC wire options | Ni200, titanium, stainless steel, and TCR |
| Working modes | VW-H/N/S, CCW, CCT, VT-Ni/Ti/SS, TCR, RTC, and bypass |
| Display | 0.96-inch OLED screen |
| Battery | 2 × high-amp 18650 batteries — not included |
| Body | Aluminum alloy and IML outer finish |
| Atomizer connection | Spring-loaded 510 connection |

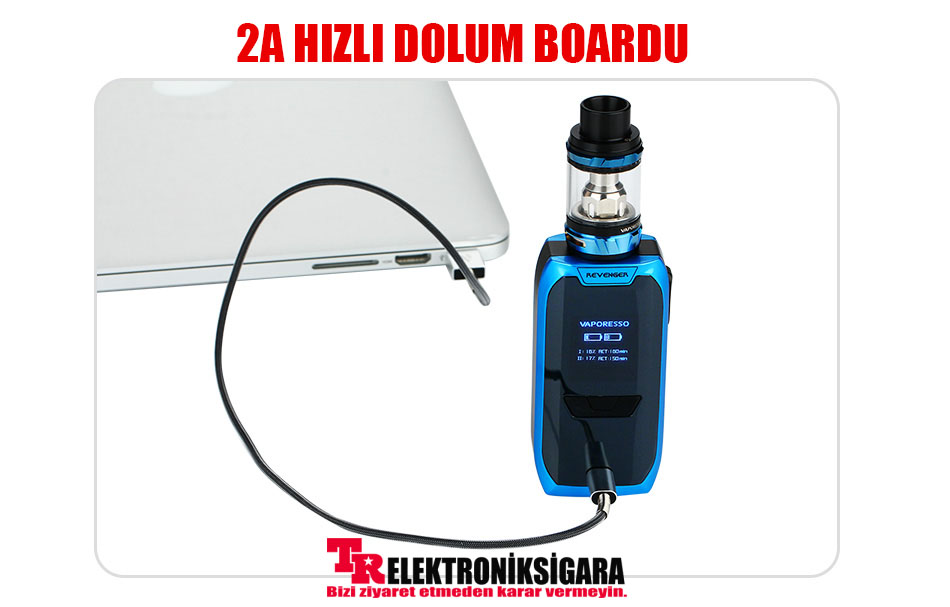

| USB connection | Micro-USB charging and firmware connection |
| Tank capacity | 5 ml standard version / 2 ml TPD version |
|---|---|
| Dimensions | Approx. 26.5 × 56 mm |
| Filling system | Slide-top fill |
| Airflow | Dual-channel, adjustable bottom airflow |
| Coil connection | Replaceable Vaporesso GT Core coil |
| Tank connection | 510 |
| Material | Stainless steel, Pyrex glass, and Delrin drip tip |
The device operates with two high-amp 18650 batteries. Batteries are not included in the package and must be used as a matched pair.

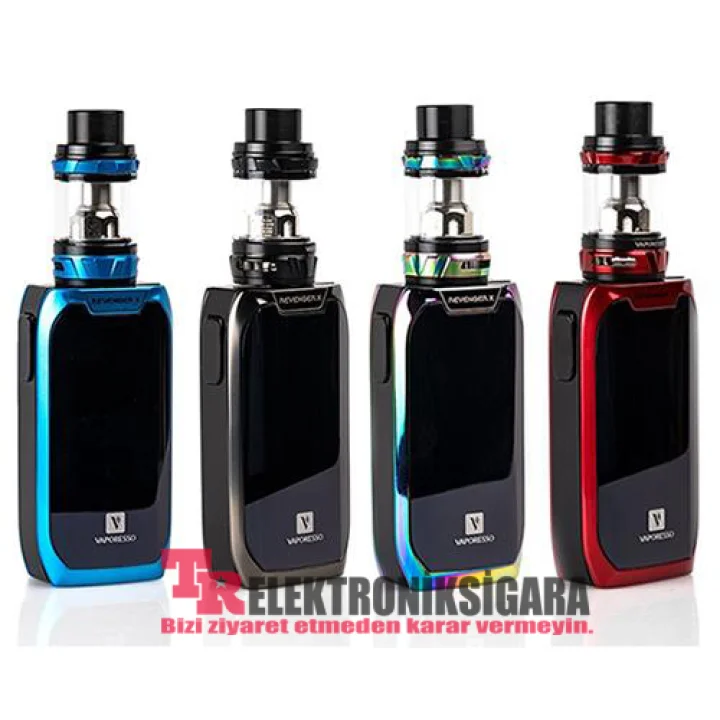

The original Revenger uses physical adjustment buttons and the OMNI Board 2.0. The Revenger X is a separate model featuring a touch control area and the OMNI Board 2.2 platform.
The NRG Tank is designed for the Vaporesso GT Core family. GT2, GT4, GT6, GT8, GT Meshed, and suitable GT CCELL options can be used.
The waiting period ensures that the e-liquid fully saturates the cotton inside the coil. Firing an insufficiently saturated coil can cause the cotton to burn and result in a permanent burnt taste.
