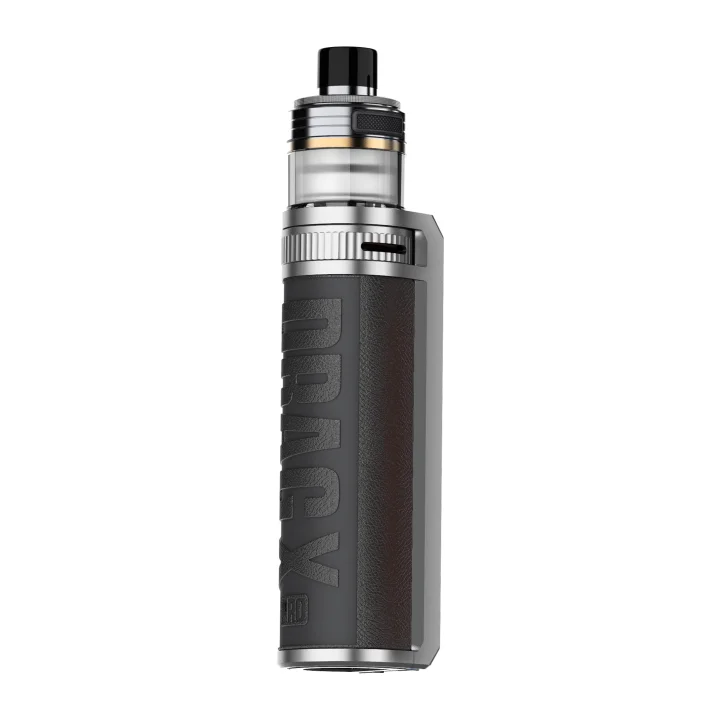

Voopoo Drag X Pro 100W Pod Mod
The Voopoo Drag X Pro is designed for high-power DTL vaping, featuring 5–100W adjustable power, a single external 21700 or 18650 battery, a 5.5 ml TPP-X Pod, and the GENE.FAN 3.0 chipset. It delivers an advanced pod-mod experience with a lockable filling system, 360° airflow, and auto or manual activation options.
5–100W power
21700 / 18650 battery
5.5 ml TPP-X Pod
8.5V Boost output
TPP-DM coil
Coil Compatibility Information
The TPP-X Pod included in the package works exclusively with Voopoo TPP-DM coils.
To use standard PnP coils, you must also obtain a compatible
standard PnP Pod for the Drag X Pro.
Newer generation PnP X coils are not compatible with this TPP-X cartridge.
Voopoo Drag X Pro Key Features
GENE.FAN 3.0 Chipset
Supporting Smart, RBA, and TC modes, this chipset offers more stable output at high power and smart coil recognition features.
100W Maximum Power
With 5–100W adjustable power and an 8.5V maximum output voltage, it supports high-wattage coils like the TPP-DM3.
21700 or 18650 Battery
Can be powered by a single external 21700 battery or a single 18650 battery using the included adapter.
TPP-X Pod
Features a 5.5 ml capacity, a lockable side-fill mechanism, magnetic connection, and a press-fit TPP-DM coil system.
360° Airflow
The dual-slot bottom airflow system can be precisely adjusted according to the coil used and preferred draw tightness.
Auto and Manual Draw
The device can be used via the fire button or through the supported auto-draw mode. A separate toggle switch provides convenience during transport.
Technical Specifications
| Product dimensions |
134.5 × 34.5 × 28.8 mm |
| Chipset |
GENE.FAN 3.0 |
| Power range |
5–100W |
| Maximum output voltage |
8.5V |
| Resistance range |
0.1–3.0Ω |
| Battery support |
Single 21700 or single 18650 with adapter — not included |
| Cartridge |
Voopoo TPP-X Pod |
| Capacity |
5.5 ml / TPD version 2 ml |
| Filling system |
Button-lock side fill |
| Coil connection |
Press-fit TPP-DM coil |
| Screen |
0.96-inch color TFT screen |
| Working modes |
Smart, RBA, and TC on supported software versions |
| Body material |
Zinc alloy and leather |
| Charging |
USB Type-C, 5V/2.5A |
Compatible Voopoo TPP-DM Coils
The TPP-X Pod is compatible with TPP-DM1, DM2, DM3, and DM4 coils. DM2 and DM3 coils are included in the package for high-power DTL usage.
| Coil |
Resistance |
Power range |
Vaping style |
Status |
| TPP-DM1 |
0.15Ω |
60–80W |
DTL |
Sold separately |
| TPP-DM2 |
0.2Ω |
40–60W |
DTL |
In box |
| TPP-DM3 |
0.15Ω |
80–100W |
High-power DTL |
In box |
| TPP-DM4 |
0.3Ω |
32–40W |
RDL |
Sold separately |
Important: Although both DM1 and DM3 coils are 0.15Ω, their wattage ranges differ. When purchasing coils, check not only the ohm value but also the DM1 or DM3 model code.

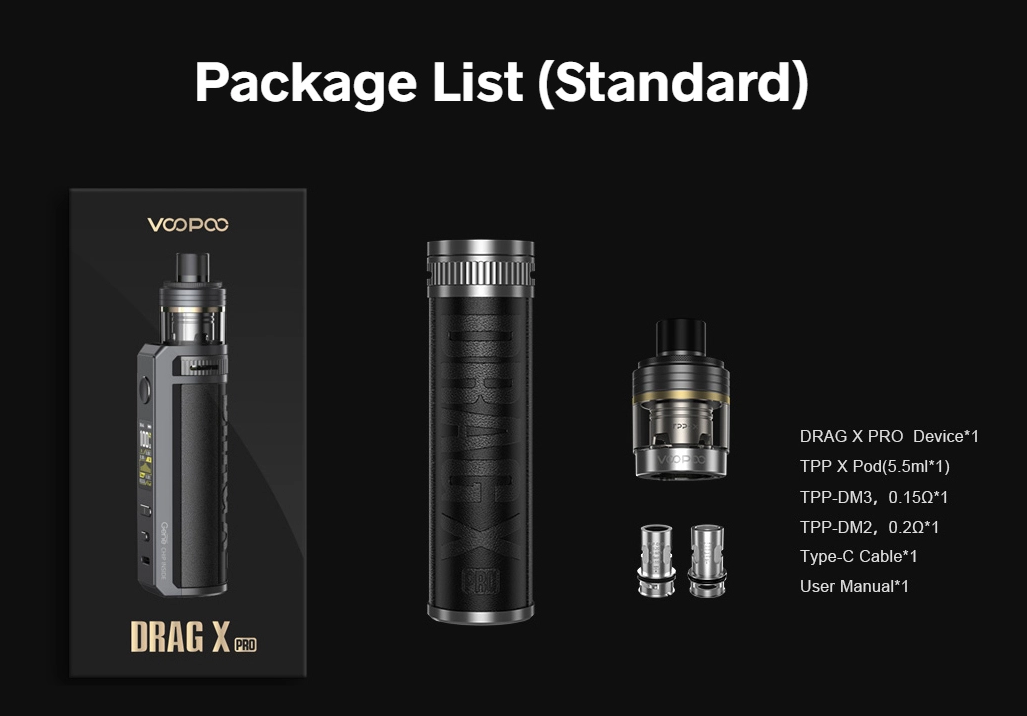

Package Contents
• 1 × Voopoo Drag X Pro device
• 1 × Voopoo TPP-X Pod, 5.5 ml
• 1 × TPP-DM3 0.15Ω coil, 80–100W
• 1 × TPP-DM2 0.2Ω coil, 40–60W
• 1 × 18650 battery adapter
• 1 × USB Type-C charging cable
• 1 × User manual
18650 or 21700 battery is not included in the package.
First Use and Coil Priming
1. Insert the battery
Insert the 21700 battery directly, or the 18650 battery using the included adapter, paying attention to polarity.
2. Install the coil
Push the TPP-DM coil straight into the bottom section of the cartridge until fully seated.
3. Fill with e-liquid
Press the hidden button and rotate the filling ring, open the silicone plug, and fill the cartridge.
4. Wait
Wait at least 5–10 minutes after filling for the new coil cotton to fully saturate.
5. Start at low wattage
Begin at the lower level of the coil's recommended range and gradually increase power.
Electronic Safety Protections
Overtime protection
Short-circuit protection
Overcharge protection
Output over-current protection
Over-discharge protection
Over-temperature protection
Max power protection
Battery reverse protection
Battery and Charging Safety
- Do not use 18650/21700 batteries with torn or damaged wraps.
- Choose original batteries capable of delivering high current suitable for the device's power level.
- Do not carry batteries loosely unprotected with keys, coins, or other metal objects.
- The Type-C port supports 5V/2.5A charging. Use a standards-compliant 5V source and a quality cable.
- Do not leave charging unattended and avoid charging the device in excessively hot environments.
- It is recommended to use an independent 18650/21700 battery charger for devices using external batteries.
Frequently Asked Questions
What coils does the Drag X Pro work with?
The TPP-X Pod included in the box works with TPP-DM1, DM2, DM3, and DM4 coils. To use standard PnP coils, a compatible PnP Pod is required.
Can PnP X coils be installed in this device?
No. The TPP-X Pod and the newer generation PnP X coil platform have different connections and are not cross-compatible.
Are 18650 and 21700 batteries used together?
No. The device uses only a single battery. You can use either one 21700 battery directly or one 18650 battery with the included adapter.
What is the difference between DM1 and DM3?
Both are rated at 0.15Ω; however, the DM1 operates in the 60–80W range, while the DM3 operates in the 80–100W range. Therefore, the exact coil code must be checked.
What does Smart Mode do?
It detects the installed coil resistance to help select an appropriate power level. You should still check the wattage range specified on the coil.
This product is intended for adult users only. Nicotine is addictive. Keep the product out of reach of children and pets.
