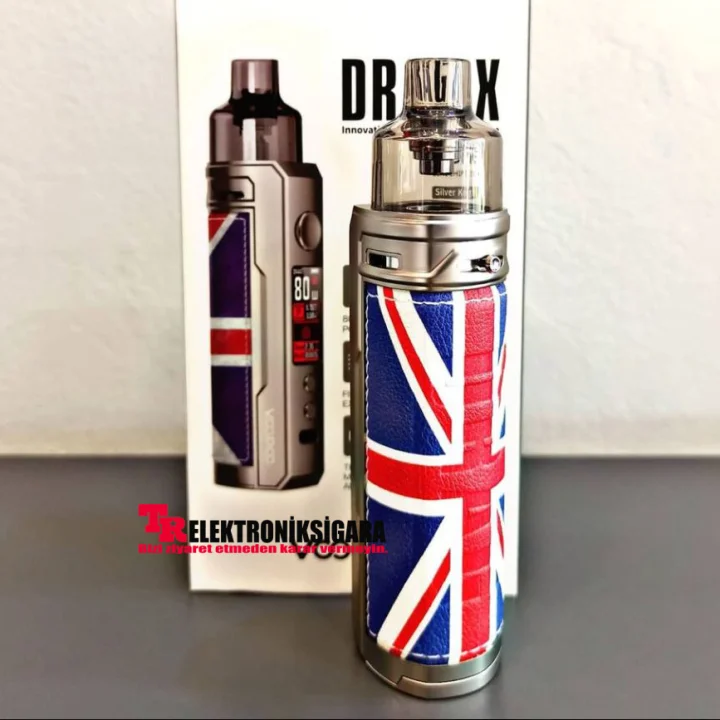

The Voopoo Drag X combines 5–80W adjustable power, a single external 18650 battery, a 4.5 ml PnP cartridge, and precise airflow control in an ergonomic metal and leather body. The included PnP-VM1 and PnP-VM6 coils are primarily designed for RDL and DTL use.
Voopoo Drag X Key Features
Offers fast ignition, coil detection, and Smart Mode support, which helps set the appropriate power range for the installed coil.
Wide power range compatible with different PnP coil resistances for MTL, RDL, and DTL usage options.
The control mechanism at the rear allows for precise adjustment of either tighter or more open draw styles.
Uses a single replaceable high-drain 18650 battery. Battery is not included in the package.
Daily use is simplified with magnetic connection, bottom-filling, and press-fit coil installation.
Allows experienced users to adjust power manually. The limitations of the coil used must be strictly considered.

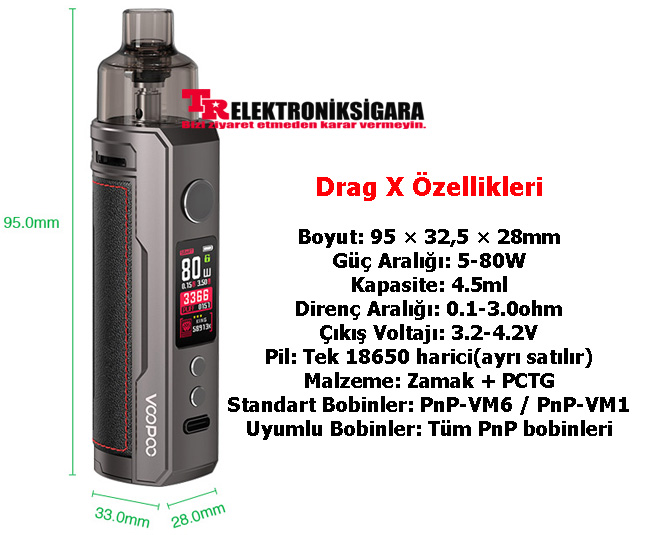

Technical Specifications
| Kit Dimensions | 124 × 32.5 × 28 mm |
| Power Range | 5–80W |
| Output Voltage | 3.2–4.2V |
| Supported Resistance | 0.1–3.0Ω |
| Battery | 1 x External high-drain 18650 battery — Not included |
| Cartridge Capacity | 4.5 ml / 2 ml TPD Version |
| Chipset | GENE.TT |
| Coil Platform | Standard/older gen Voopoo PnP — Not PnP X |
| Device Material | Metal alloy and leather |
| Cartridge Material | PCTG |
| Charging Port | USB Type-C, 5V/2A |
The PnP-VM6 and PnP-VM1 coils included in the box are for open draws. For tighter usage, other standard PnP coils suitable for the device's power range can also be used.
| Coil | Resistance | Suggested Power | Draw Style | Status |
|---|---|---|---|---|
| PnP-VM6 | 0.15Ω | 60–80W | DTL | In Box |
| PnP-VM1 | 0.3Ω | 32–40W | RDL / DTL | In Box |
| PnP-VM3 | 0.45Ω | 25–35W | RDL | Sold Separately |
| PnP-VM4 | 0.6Ω | 20–28W | RDL | Sold Separately |
| PnP-TM2 | 0.8Ω | 12–18W | MTL | Sold Separately |
| PnP-TR1 | 1.2Ω | 10–15W | MTL | Sold Separately |

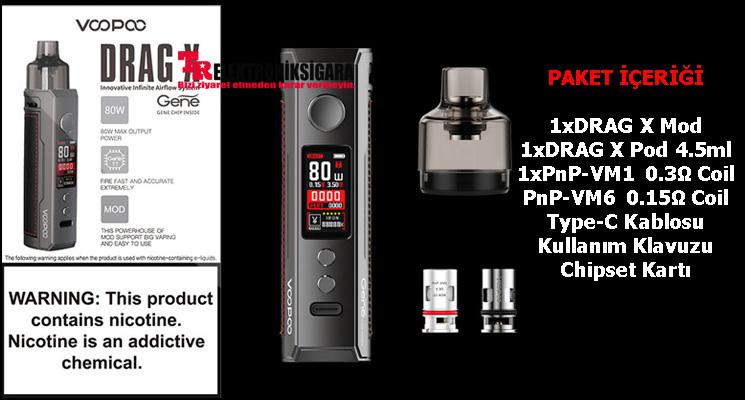

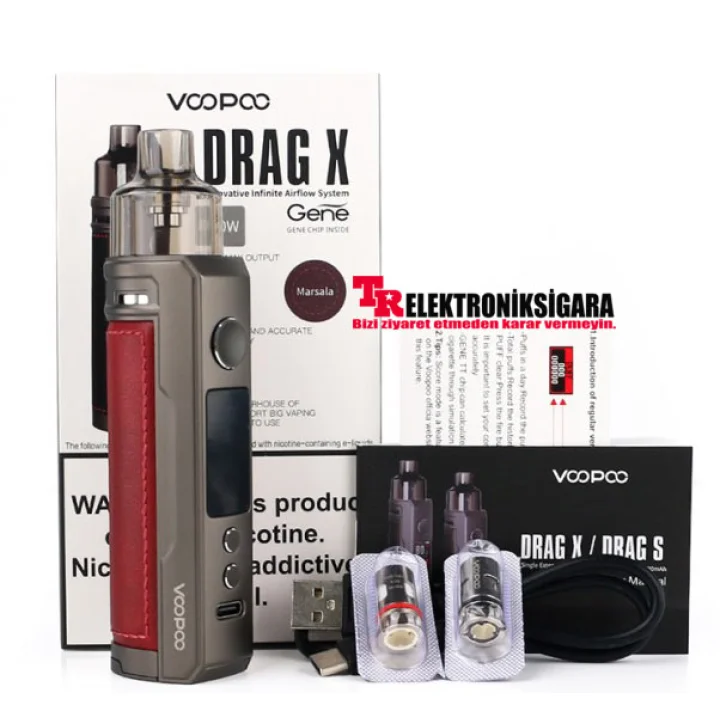

Package Contents
The original Drag X uses the standard/older generation Voopoo PnP coil platform. PnP X coils are not compatible.
No. The device operates on a single external high-drain 18650 battery, which must be purchased separately.
With a compatible PnP MTL coil and airflow adjustment, a tighter draw is possible. The included VM1 and VM6 coils are primarily for RDL/DTL.
The cotton inside the coil needs to fully saturate with e-liquid. Waiting at least 5 minutes and starting at low power reduces the risk of early burning.
A small amount of condensation can occur in pod systems. Periodically wipe the cartridge base and device contact points with a dry cloth; ensure the silicone fill plug is closed.
