25 MM • SINGLE MESH • TOP AIRFLOW
GeekVape Zeus X Mesh ZX II RTA
Rich flavor and high vapor performance with a single mesh build deck, 4.5 ml e-liquid capacity, and a top-to-bottom three-dimensional airflow system.
⚙
Single Mesh Deck
Clamped mesh installation system
∼
Top Airflow
Leak-resistant design
◆
4.5 ml Capacity
Pyrex bubble glass tank
↻
Top Fill
Quarter-turn open fill cap
GeekVape Zeus X Mesh ZX II RTA
GeekVape Zeus X Mesh ZX II RTA is a rebuildable tank atomizer offering rich flavor and high vapor performance with its fast and evenly heating single mesh installation system. Thanks to its 25 mm base diameter, it creates a balanced look with many standard and high-power box mod devices.
Manufactured using a stainless steel body and a durable Pyrex glass tank, the ZX II RTA features a sturdy structure suitable for daily use. While offering a 4.5 ml e-liquid capacity with the bubble glass, the quarter-turn twist-to-open top fill cap allows for quick and practical refilling.
Air entering from the top is directed downward through the internal airflow channels of the atomizer, reaching the mesh surface from multiple angles. This three-dimensional airflow helps the mesh coil surface wick more evenly, while the top airflow-inlet design reduces the risk of e-liquid leakage.
Mesh Installation System
Dual Clamp Deck
The mesh strip is placed between the two clamps on the deck and securely fixed with screws.
Spring-Loaded Ceramic Support
The spring-loaded ceramic block at the center of the deck pushes the cotton upward, helping to maintain contact between the cotton and the mesh surface.
GeekVape Zeus X Mesh ZX II RTA Features
Brand: GeekVape
Model: Zeus X Mesh ZX II RTA
Atomizer Type: Rebuildable mesh RTA
Base Diameter: 25 mm
Maximum E-Liquid Capacity: 4.5 ml
Tank Material: Pyrex glass
Body Material: Stainless steel
Build Structure: Single mesh coil
Deck System: Dual clamp mesh deck
Securing System: Side-secured screws with clamps
Spring-loaded ceramic cotton support block
Heat-resistant PEEK insulation
Top-to-bottom three-dimensional airflow
Adjustable dual top airflow channels
Quarter-turn top-fill cap
Wide-bore 810 Drip Tip
810 ULTEM spare Drip Tip
510 Drip Tip adapter
Standard 510 atomizer connection
Mesh Options Included in the Box
N80 Mesh 0.17Ω
Material: Ni80
Recommended Power: 50-80W
Fast ramp-up and dense vapor performance
KA1 Mesh 0.2Ω
Material: Kanthal A1
Recommended Power: 50-70W
Balanced heating and strong flavor performance
Things to Consider in Mesh Installation
✓ Properly shape the mesh strip into an arched dome shape.
✓ Be careful not to create kinks or sharp folds on the mesh.
✓ The cotton must contact the entire mesh surface without any gaps.
✓ Thoroughly saturate the cotton with e-liquid after installation.
✓ Start at a lower wattage value on first use and gradually increase power.
✓ Firing with dry cotton can damage both the mesh and the cotton.
Important: The Zeus X Mesh ZX II is not an atomizer that uses pre-built plug-and-play coils. Mesh and cotton installation must be performed by the user. The product is designed for DL usage aimed at high vapor production.

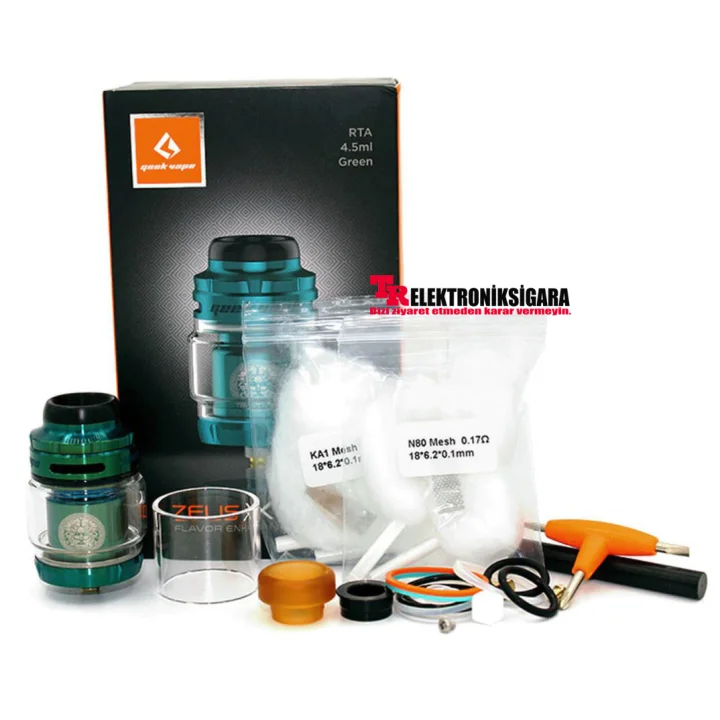

Package Contents
1 × GeekVape Zeus X Mesh ZX II RTA
1 × Replacement Glass Tube
2 × N80 Mesh Coil 0.17Ω
2 × KA1 Mesh Coil 0.2Ω
2 × Agleted Shoelace Cotton
1 × 810 ULTEM Drip Tip
1 × 510 Drip Tip Adapter
1 × Mesh Bending Tool
1 × Screwdriver
1 × Spare Screws and O-Rings Pack
1 × User Manual
Frequently Asked Questions
Does the ZX II use pre-built coils?
No. In this model, the mesh strip and cotton must be built onto the deck by the user.
Does the Zeus X Mesh leak?
The top airflow design significantly reduces the risk of leakage. However, leaks may occur due to improper wicking, missing O-rings, or incorrect assembly.
Can regular wire coils be installed?
The deck structure of the ZX II is designed for single mesh strip usage. For classic single or dual wire coil setups, the standard Zeus X RTA should be chosen.
Is it suitable for MTL vaping?
No. Due to its wide airflow channels and mesh deck structure, it is intended for open DL vaping.
