3000mAh built-in battery, PnP X coil platform, and secure capacitive lock system

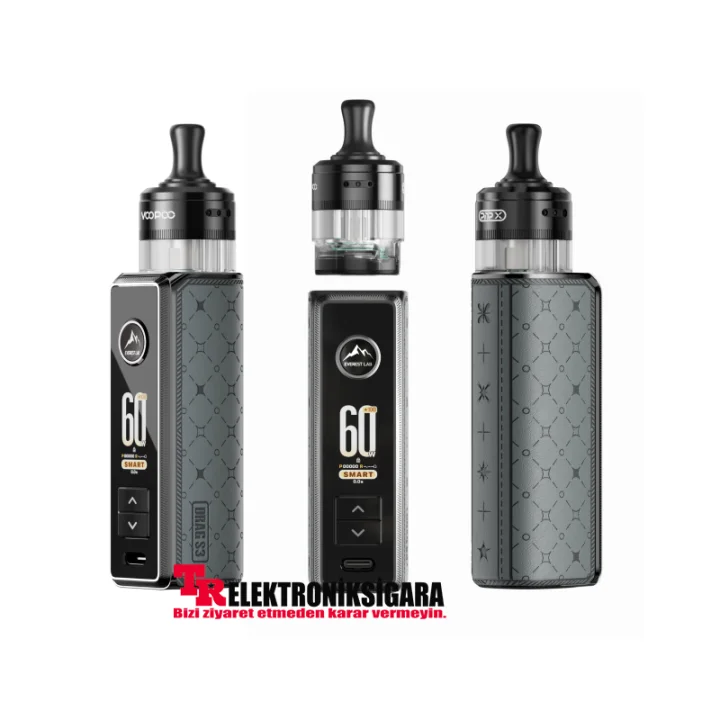

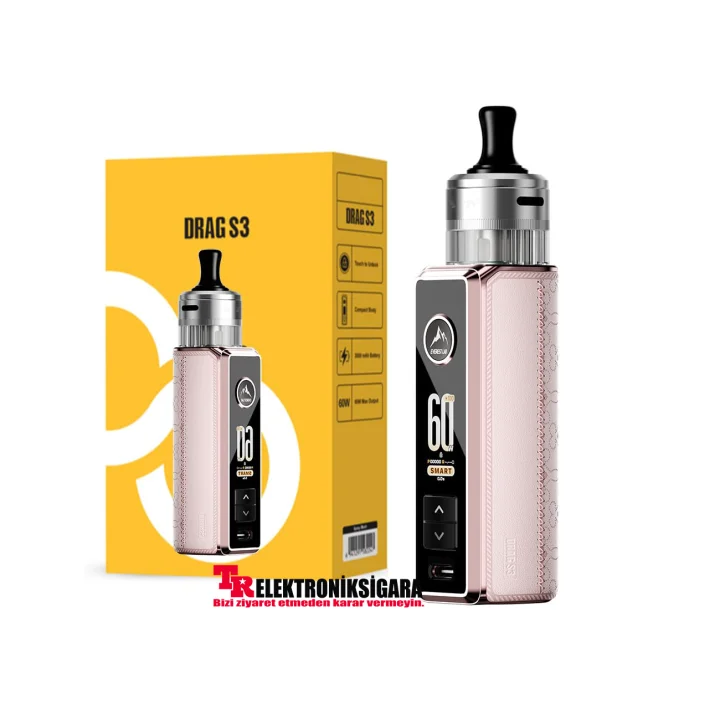

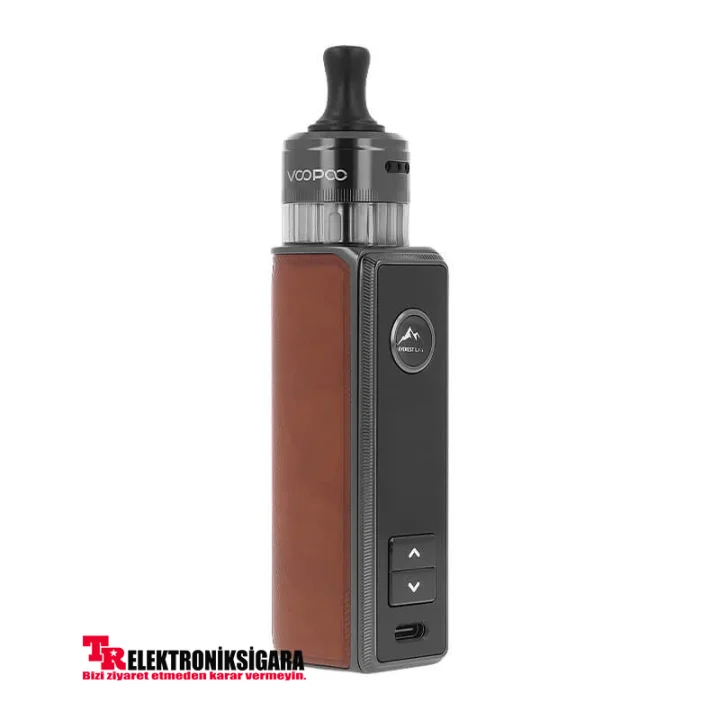

The VOOPOO Drag S3 is a next-generation pod mod device that combines a 3000mAh built-in battery, 5–60W adjustable power, and the PnP X atomization platform in a compact body. Its design, which eliminates the need for external batteries, offers ease of use and portability for daily vaping.
The GENE.TT 2.0 chipset simplifies power management with Smart, RBA, and Eco modes. While Smart mode helps determine the appropriate power range for the installed coil, RBA mode allows for manual power adjustment. Eco mode helps reduce battery consumption.
The 5ml PnP X MTL cartridge included in the standard package is prepared for MTL and RDL use with the 0.6Ω and 0.8Ω PnP X coils. Thanks to the top airflow, side-filling system, and replaceable 510 drip tip, the draw character can be customized according to user preference.
VOOPOO Drag S3 Key Features
High-capacity battery that does not require external batteries, charged via Type-C.
5–60W adjustable output power supports different PnP X coil options from MTL to DTL.
The capacitive sensor on the fire button helps reduce the risk of accidental firing when not held.
Offers stable power output and customizable usage with Smart, RBA, and Eco modes.
The top-inlet cartridge structure helps reduce the risk of leaks caused by e-liquid and condensation.
Power, coil resistance, battery level, and usage info can be tracked on the color screen.
The maximum output power of the VOOPOO Drag S3 model is 60W. As the Drag X3 model has 80W power, the power values of the two models should not be confused.
| Device Model | VOOPOO Drag S3 |
|---|---|
| Chipset | GENE.TT 2.0 |
| Output Power | 5–60W adjustable |
| Output Voltage | 3.2–4.35V |
| Resistance Range | 0.1–3.0Ω |
| Battery | 3000mAh built-in battery |
| Operating Modes | Smart / RBA / Eco |
| Screen | 0.96-inch TFT color screen |
| Lock System | Capacitive touch sensor on fire button |
| Body Material | Zinc alloy and leather finish |
| Cartridge | PnP X MTL cartridge |
| Liquid Capacity | 5ml standard / 2ml TPD |
| Filling System | Side-fill with silicone plug |
| Airflow | Adjustable top airflow |
| Drip Tip | Replaceable 510 drip tip |
| Charging | USB Type-C, 5V/2A |
The Drag S3 is compatible with the VOOPOO PnP X coil platform. Older generation normal PnP, PnP-VM, PnP-TW, and PnP-RBA coils are not the same as PnP X coils. Please ensure that the PnP X label is present when purchasing coils.
| Coil | Power Range | Vaping Type | Suitable Liquid | Note |
|---|---|---|---|---|
| 0.8Ω | 12–16W | MTL | ~50% VG | Included in standard package |
| 0.6Ω | 18–23W | MTL / RDL | 50–60% VG | Included in standard package |
| 0.45Ω | 25–32W | RDL | 50–70% VG | Sold separately |
| 0.3Ω | 32–40W | RDL / DTL | 50–70% VG | Recommended with DTL cartridge |
| 0.2Ω | 40–60W | DTL | 50–70% VG | Recommended with DTL cartridge |
GENE.TT 2.0 Operating Modes
Detects the installed coil resistance and helps select the appropriate power level.
Allows manual adjustment of output power in the 5–60W range.
Manages power consumption to help extend remaining battery usage time.
The Drag S3's 0.96-inch TFT screen is not a touchscreen. The touch feature is the capacitive lock sensor located on the device's fire button. This sensor helps unlock the device when held in the hand and return it to a safe state when released.
VOOPOO states that under controlled test conditions, up to 100ml of e-liquid can be consumed with one PnP X coil. Actual coil life varies depending on e-liquid content, wattage level, puff frequency, and usage style. Therefore, the 100ml value is not a guaranteed fixed lifespan.
Cartridge capacity and package contents may vary depending on the regional version of the product.
Steps for First Use
Check the orientation and insert the PnP X coil completely into the cartridge base.
Open the side-fill cap and fill the cartridge approximately two-thirds full.
Close the filling cap and wait at least 5 minutes before using the new coil.
Start at the low wattage of the recommended range and gradually increase the power.
The Drag S3 supports 5V/2A charging via USB Type-C. Use a sturdy Type-C cable and a reliable 5V USB power source. Do not leave the device unattended while charging; do not charge if wet, excessively hot, or physically damaged.
The device features protections against overtime, over-temperature, overcharge, low battery, output over-current, and short-circuits.

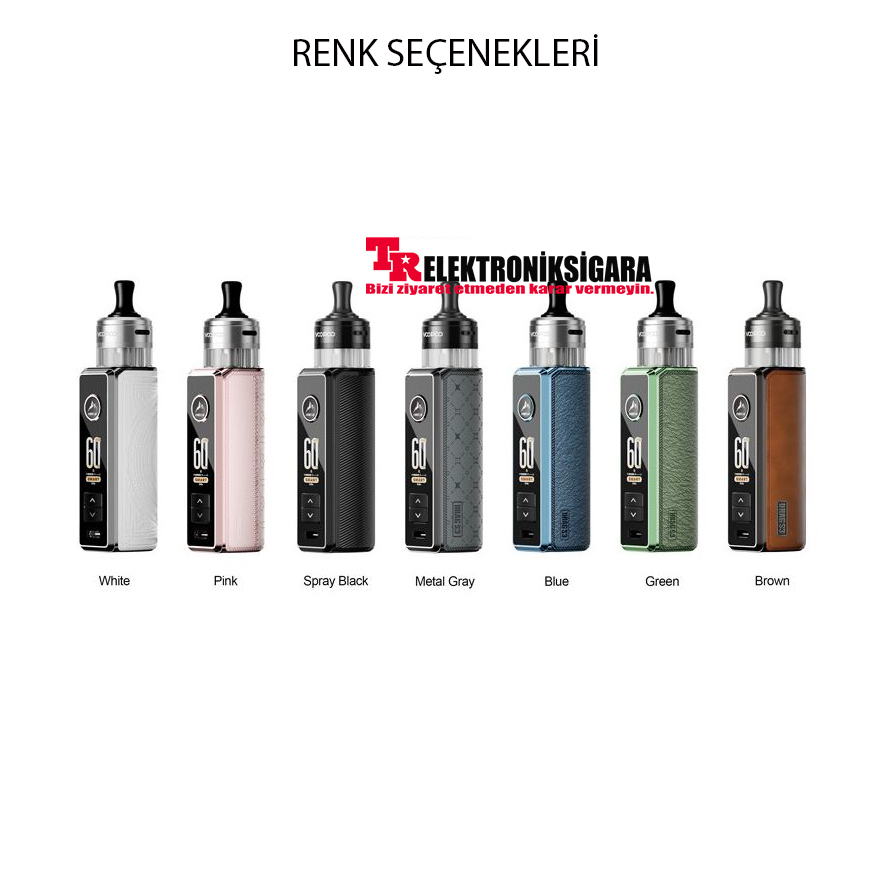

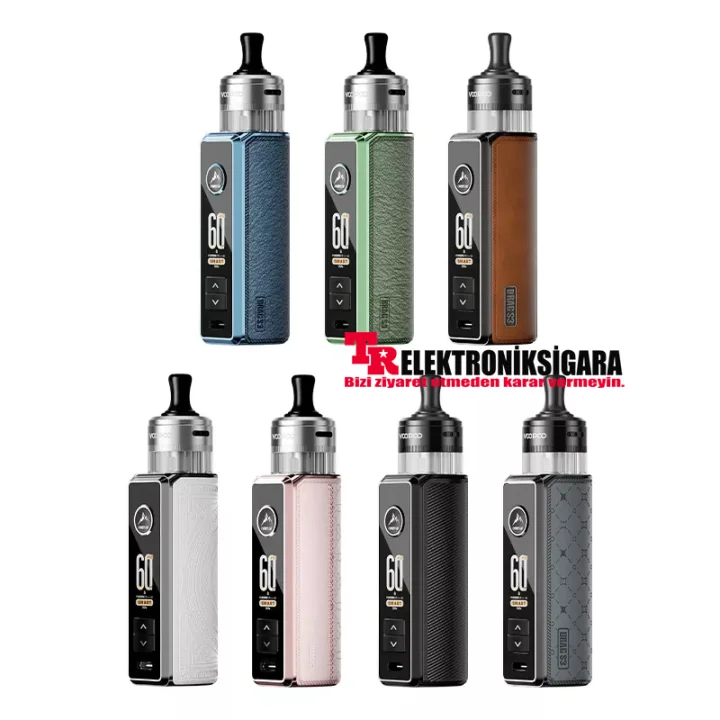

Lake Green, Cherry Pink, Brooklyn Gray, White, Pink, Green, Blue, Brown, Metal Gray, and Spray Black.
The device offers adjustable power between 5–60W. The Drag S3 model is not 80W.
No. The 0.96-inch TFT screen is not a touchscreen. The capacitive sensor is located on the fire button's lock system.
No. Coil options labeled PnP X must be used for the Drag S3.
The standard package comes with an MTL cartridge and 0.6Ω/0.8Ω coils. For DTL use, a separate PnP X DTL cartridge with 0.2Ω or 0.3Ω coils should be chosen.
No. The device contains a 3000mAh capacity built-in battery.
