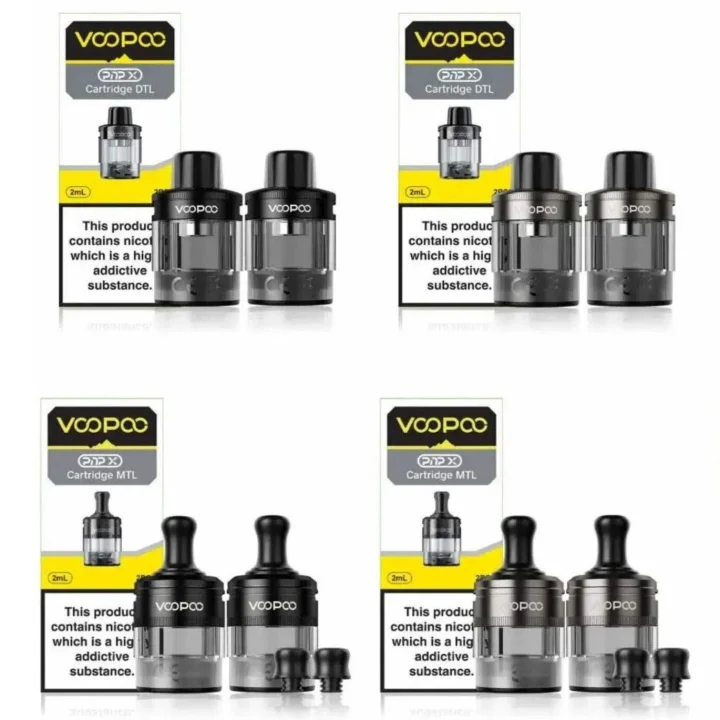

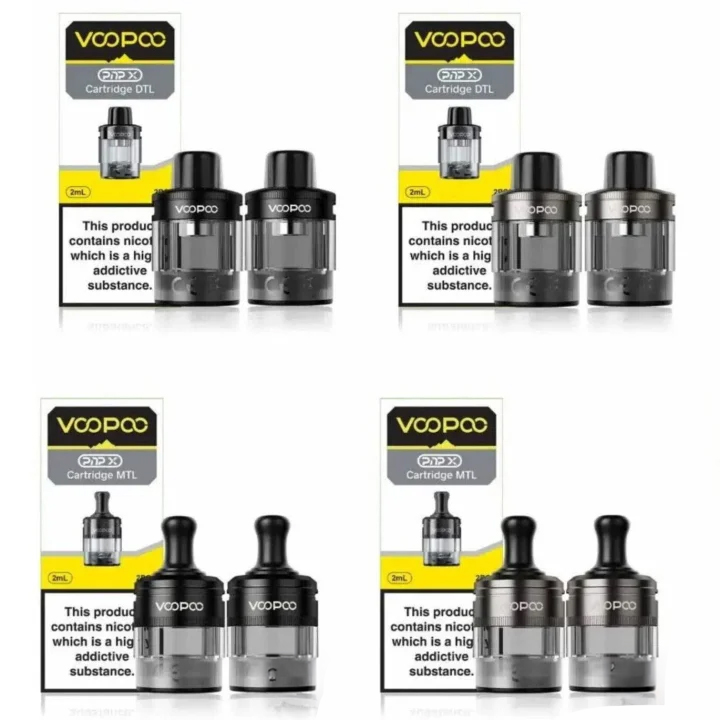

VOOPOO PnP X Pod Cartridge 2-Pack
Refillable empty PnP X cartridge pack developed for VOOPOO DRAG S2 and DRAG X2, available in MTL and DTL options.
MTL / DTL Option
2 mL Capacity
Side Fill
PnP X Coil Compatible
2 Empty Cartridges
VOOPOO PnP X Empty Cartridge
VOOPOO PnP X cartridges are designed to be used with the different resistance options of the PnP X coil platform. Two distinct cartridge options are available: DTL and MTL.
While the DTL cartridge is designed for wider airflow and dense vapor production, the MTL cartridge offers a tighter and more controlled draw. The cartridges feature a refillable design, and when a coil reaches the end of its lifespan, only the internal PnP X coil is replaced.
The package does not include coils or e-liquid.
Cartridges are shipped empty and without coils. A compatible VOOPOO PnP X coil of the appropriate resistance must be purchased separately for use.
Difference Between MTL and DTL Cartridges
PnP X DTL Cartridge
Size: Approx. Ø26 × 43.1 mm
Offers a wider mouthpiece and open airflow.
Designed for dense vapor and direct-to-lung vaping.
Recommended coils: PnP X 0.15Ω, 0.20Ω, and 0.30Ω.
PnP X MTL Cartridge
Size: Approx. Ø26 × 49.2 mm
Features a replaceable 510 drip tip structure.
Designed for tighter MTL and controlled RDL vaping.
Manufacturer's core recommendation: PnP X 0.30Ω and 0.60Ω.
Cartridge selection should not be based solely on the physical installation of the coil. The DTL cartridge has an airflow structure better suited for low-resistance and high-power coils, while the MTL cartridge is better suited for higher-resistance and low-power coils.
Cartridge and Coil Compatibility Table
| Cartridge |
Recommended Coil |
Power Range |
Vaping Style |
E-liquid Preference |
| PnP X DTL |
0.15Ω |
60–80W |
DTL |
50%–70% VG, low-nicotine freebase |
| PnP X DTL |
0.20Ω |
40–60W |
DTL |
50%–70% VG, low-nicotine freebase |
| PnP X DTL |
0.30Ω |
32–40W |
DTL / RDL |
50%–70% VG freebase |
| PnP X MTL |
0.30Ω |
32–40W |
RDL |
50%–70% VG freebase |
| PnP X MTL |
0.60Ω |
18–23W |
MTL / RDL |
50%–60% VG |
The 0.15Ω coil operates within a 60–80W power range. On devices like the DRAG S2 which provide a maximum output of 60W, this coil can only be used at the lower limit of the recommended range. Check your device's maximum wattage rating for a wider power adjustment.
Technical Specifications
| Product Name |
VOOPOO PnP X Cartridge MTL / DTL |
| Capacity in This Listing |
2 mL |
| Manufacturer Capacity Options |
2 mL or 5 mL; may vary by version and region |
| Filling System |
Side Fill |
| Airflow |
Usage with adjustable top airflow system |
| Material |
PCTG + Stainless Steel |
| Coil System |
Replaceable VOOPOO PnP X coil |
| Cartridge Connection |
Magnetic connection |
| DTL Cartridge Size |
Approx. Ø26 × 43.1 mm |
| MTL Cartridge Size |
Approx. Ø26 × 49.2 mm |
| Package Contents |
2 empty, coil-free cartridges of the selected type |
Capacity and packaging contents may vary depending on regional versions. The cartridge capacity specified on this product page is 2 mL.
Highlighted Features
MTL & DTL Option
Structure suitable for different vaping styles
Side Fill
Filling compartment with silicone plug
Top Airflow
Design aimed at reducing leakage risks
Replaceable Coil
Replacing only the coil, not the cartridge
Magnetic Connection
Easy attachment and detachment
Transparent PCTG Body
Easy monitoring of e-liquid levels
The PnP X platform's four-layer leak-proof structure is designed to reduce the risk of leakage. However, incorrect coil installation, a loose fill plug, overfilling, or the use of unsuitable e-liquid can cause leakage.
Compatible Devices
This cartridge series is primarily designed for use with the following devices:
VOOPOO DRAG S2
A built-in battery model with an output power of 5–60W.
Appropriate PnP X coils should be used based on the MTL or DTL cartridge selection.
VOOPOO DRAG X2
An external 18650 battery model with an output power of 5–80W.
Supports low and high-resistance PnP X options across a broader power range.
Although some recent VOOPOO devices use the PnP X platform, the shape and connection of the cartridge body may differ. ARGUS E40, VINCI E120, UFORCE-X Tank, or ARGUS PnP X cartridges are not the same as this product. When ordering, check not only the "PnP X" designation but also the device model and cartridge shape.
Incompatible Systems
This cartridge does not use classic PnP coils. It is not compatible with older PnP devices such as VOOPOO DRAG S, DRAG X, VINCI, VINCI X, ARGUS Pro, and similar models.
The cartridge named PnP-X used in the older "DRAG X PnP-X Kit" model also differs from the current PnP X coil platform and uses classic PnP coils.
It is also incompatible with devices using TPP coils, such as the DRAG X Pro.
E-liquid Selection
DTL Cartridge
It is recommended to use low-nicotine freebase e-liquids with 0.15Ω, 0.20Ω, and 0.30Ω coils. A 50%–70% VG range is suitable.
MTL Cartridge
E-liquids with a 50/50 or 50%–60% VG ratio can be used with the 0.60Ω coil. E-liquid and nicotine preferences should be chosen based on the coil resistance used.
Using high-nicotine salt e-liquids with low-resistance, high-wattage DTL coils is not recommended. Coil resistance, wattage value, VG/PG ratio, and nicotine level should be evaluated together.
Coil Installation and First Fill
- Remove the cartridge from the device and turn its bottom section upward.
- Check the gasket and connection parts of the compatible PnP X coil.
- Properly align the directional base of the coil with the cartridge slot.
- Press the coil straight down until it is fully seated.
- Make sure there is no gap between the coil and the cartridge base.
- Open the side silicone fill cap and fill the cartridge to approximately two-thirds capacity.
- Close the fill cap completely and check for any leaks.
- Wait about 10 minutes for the new coil to absorb the e-liquid.
- Start your first use at the lower end of the coil's recommended wattage range.
PnP X coils are not screwed in. Do not attempt to twist or tighten the coil. After aligning the coil direction, insert it by pressing it into the cartridge slot.
Package Contents
2 × VOOPOO PnP X Empty Cartridge of Selected Type
Depending on the selected package, two MTL or two DTL cartridges are shipped. The package does not contain coils, e-liquid, or a device.
Important Return and Compatibility Notice
Before placing an order, check your device model and the cartridge type you need. MTL and DTL cartridges differ in size, mouthpiece design, and recommended coil options.
If you are unsure of its compatibility with your device, you can contact our support line for information before opening the product.
Due to hygiene and resalability conditions, returns and exchanges cannot be accepted for cartridges whose packaging has been opened, where a coil has been installed, e-liquid has been filled, or use has been attempted.
