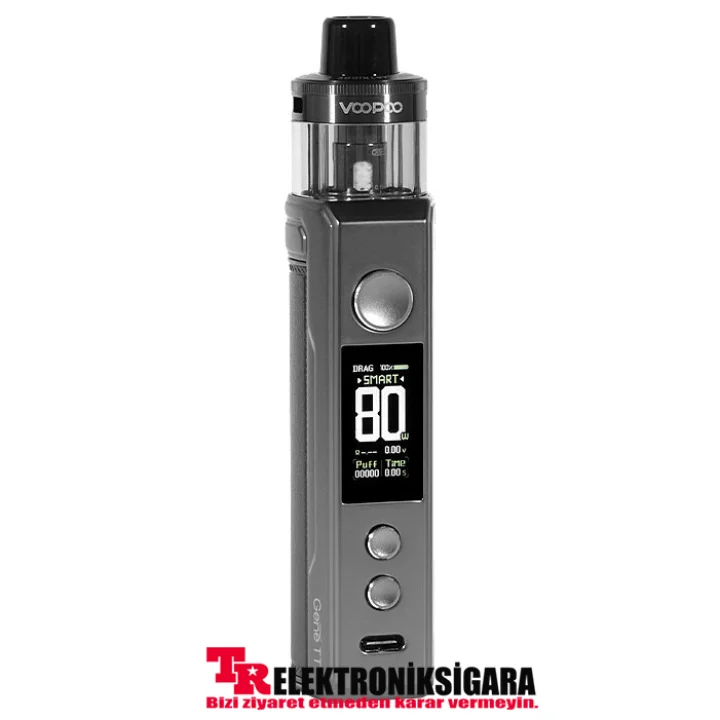

The Voopoo Drag X2 is a compact pod-mod device powered by 5–80W adjustable power, a single external 18650 battery, a 5 ml PnP X DTL cartridge, and the GENE.TT 2.0 chipset. Featuring top airflow, Smart, RBA, and ECO modes, it offers a customizable structure for DTL and RDL vaping.
Voopoo Drag X2 Key Features

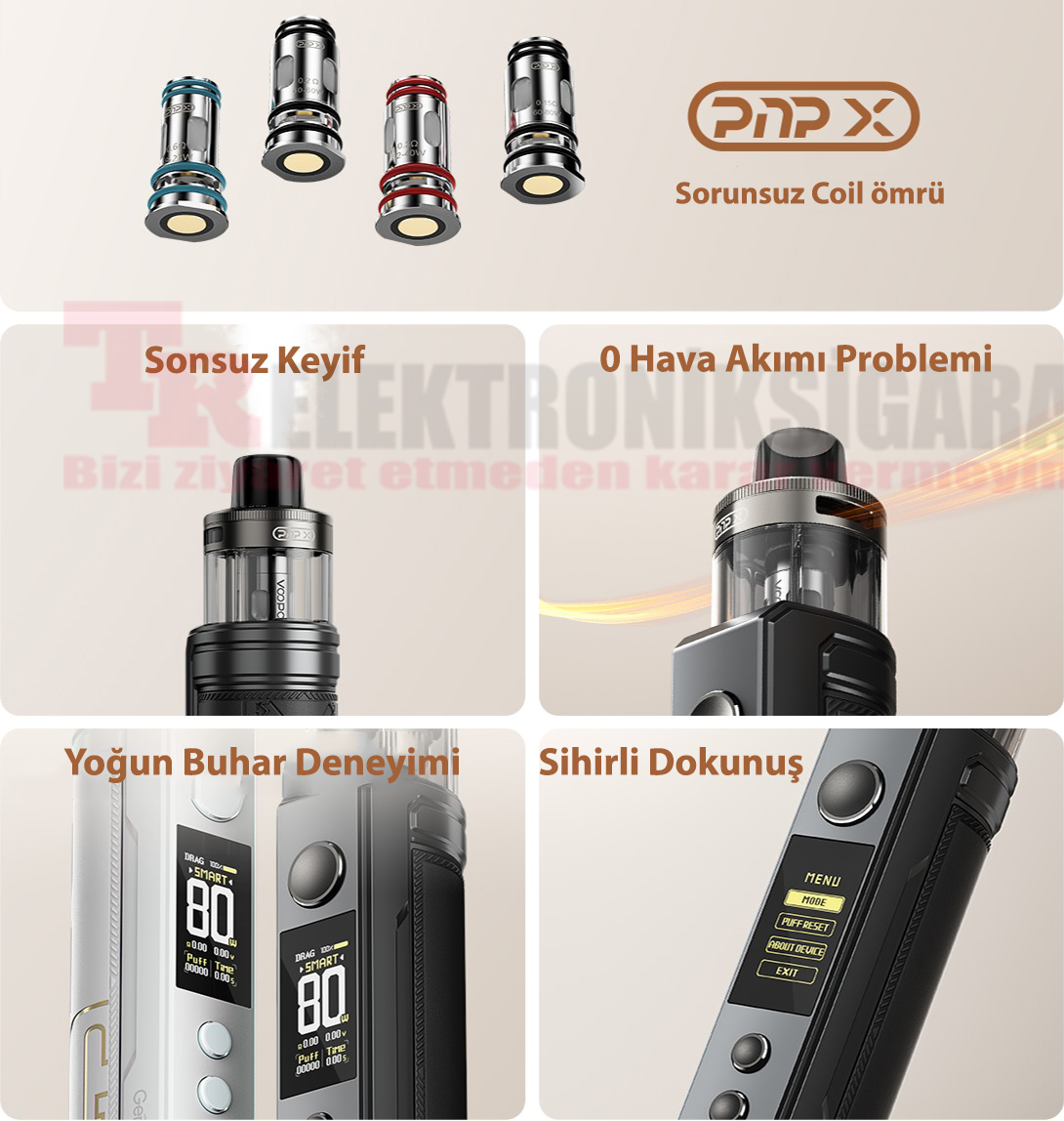

Featuring a four-layer coil structure and directional coil installation system, e-liquid delivery, coil durability, and condensation control have been improved.
Manages Smart Mode which recognizes installed coils, RBA Mode offering free power adjustment, and ECO Mode designed to help reduce battery consumption.
Allows you to adjust power according to low and high-resistance PnP X coils and switch between DTL and RDL styles.

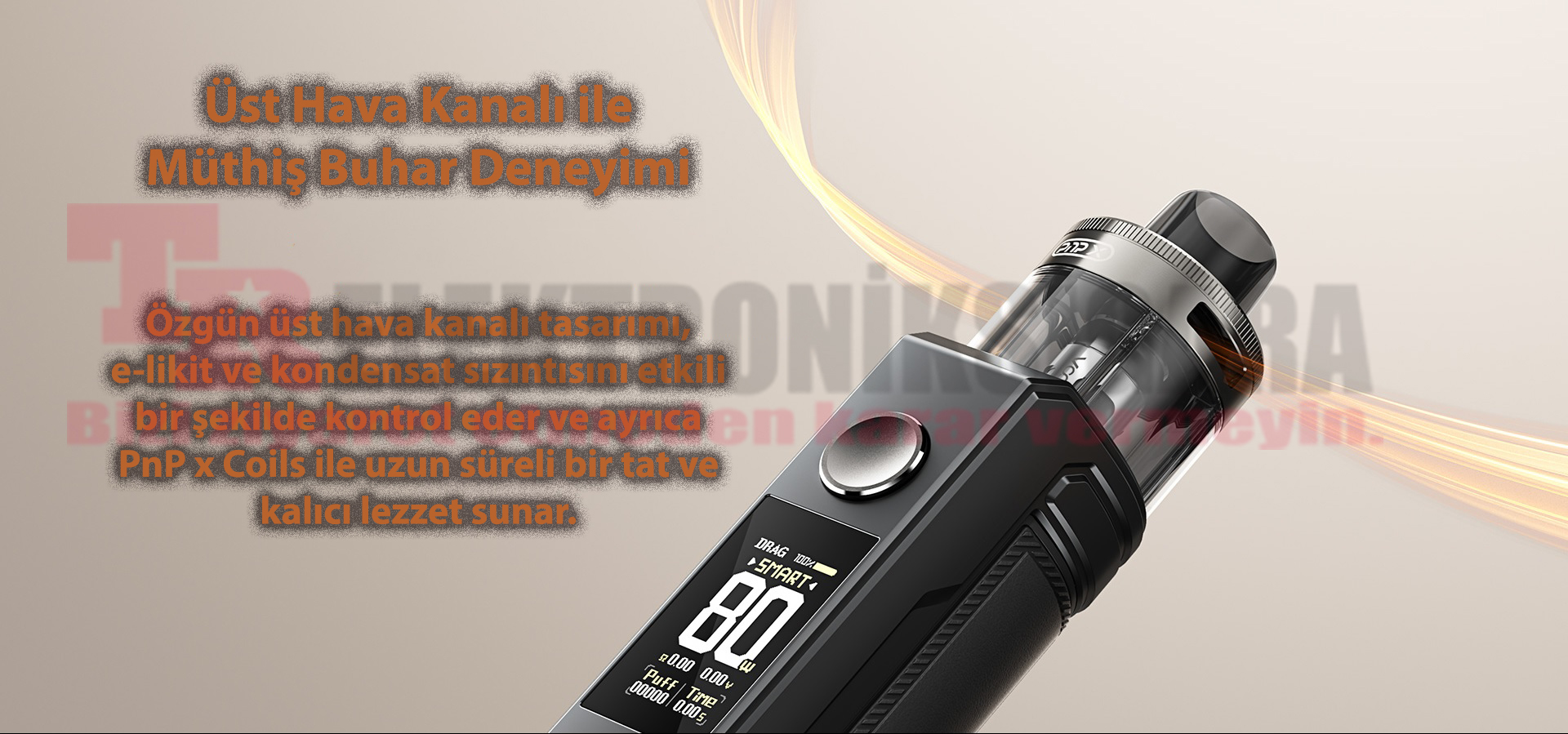

The scaled airflow adjustment on the upper section of the cartridge precisely controls air intake while helping minimize the risk of e-liquid reaching the cartridge base.

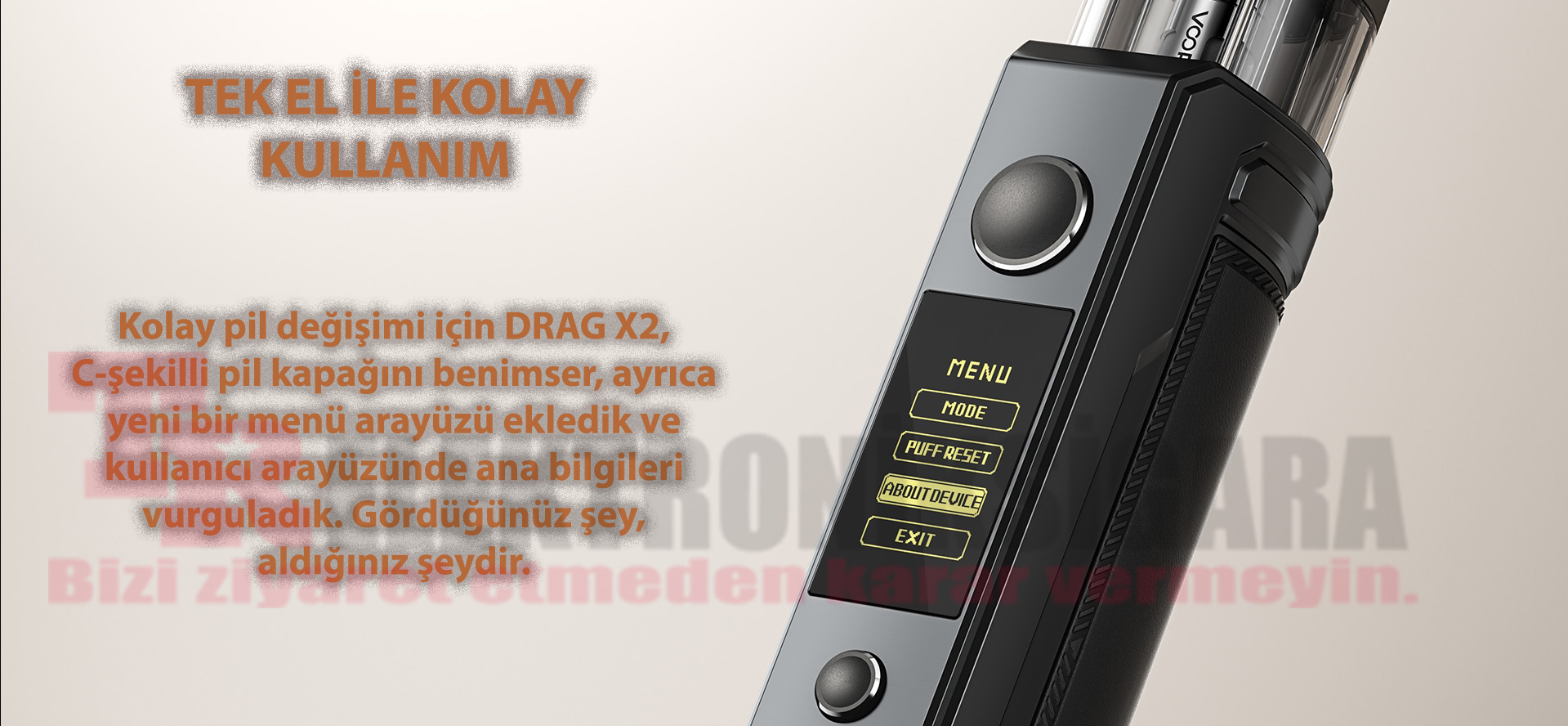

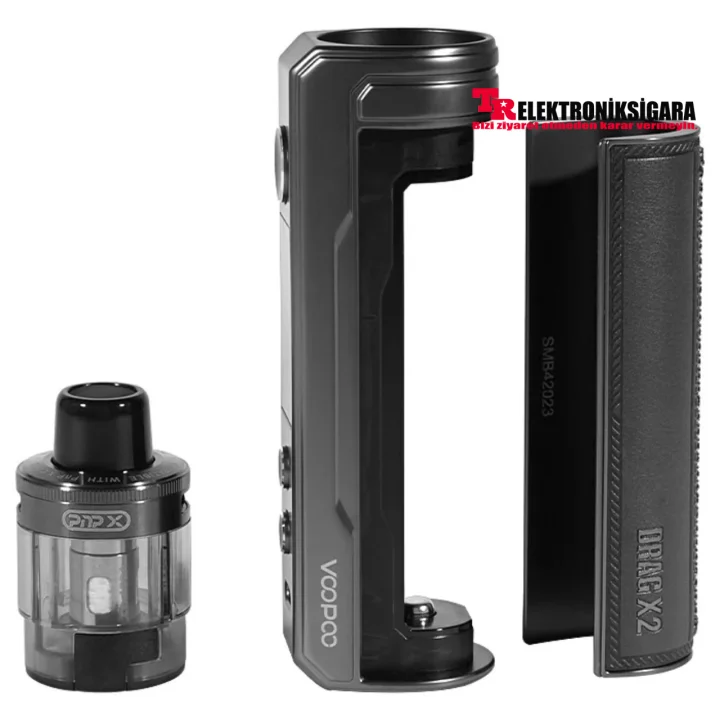

The leather-wrapped C-shaped back cover can be completely detached, allowing quick and easy replacement of the external 18650 battery.
Displays core information such as power, resistance, puff duration, battery level, and working mode on a colorful interface.

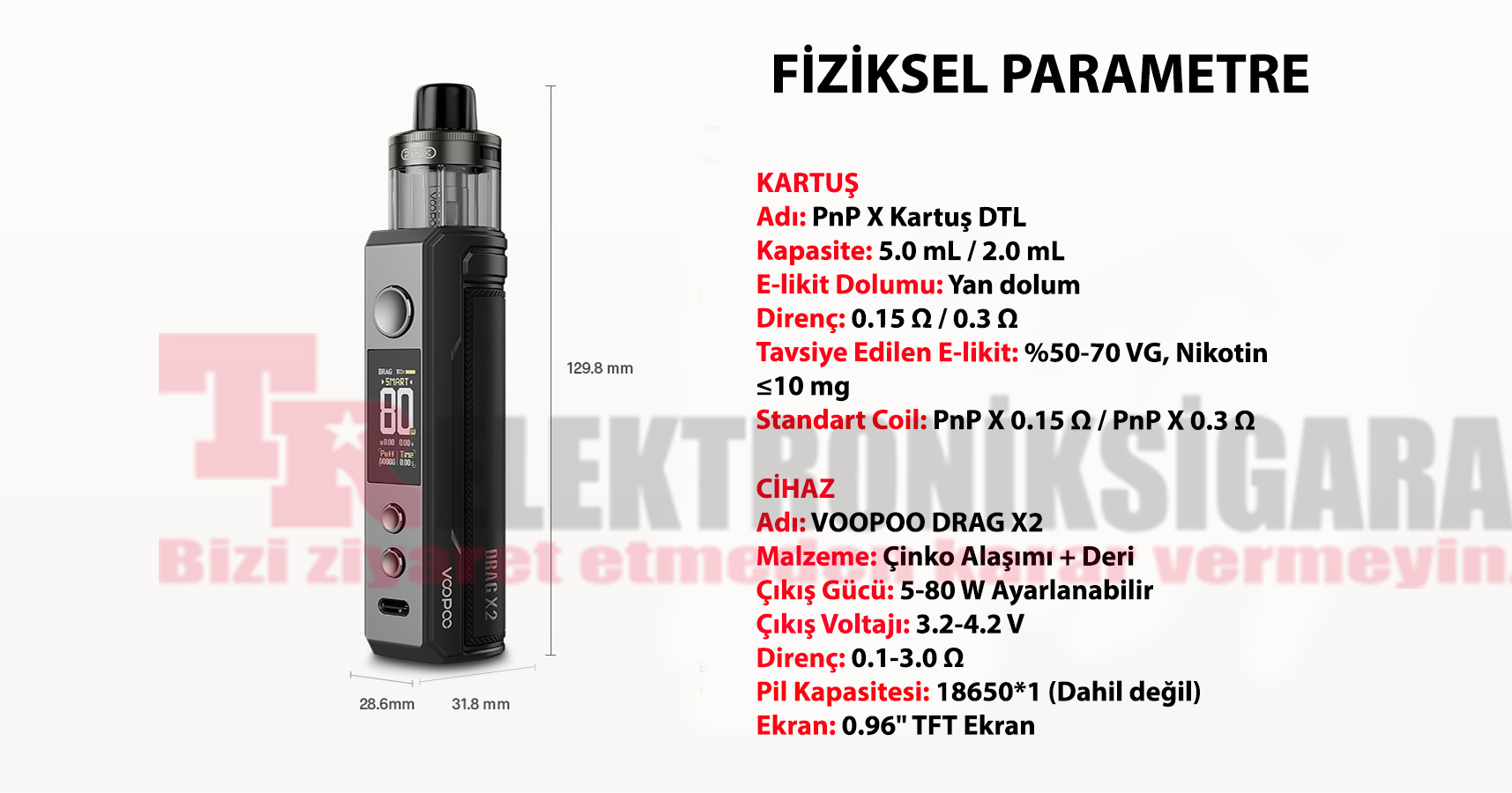

Technical Specifications
| Kit dimensions | Approx. 129.8 × 31.8 × 28.6 mm |
| Chipset | GENE.TT 2.0 |
| Output power | 5–80W adjustable |
| Output voltage | 3.2–4.2V |
| Resistance range | 0.1–3.0Ω |
| Battery | 1 × external 18650 battery — not included |
| Screen | 0.96-inch color TFT screen |
| Working modes | Smart / RBA / ECO |
| Body material | Zinc alloy and leather |
| Cartridge | PnP X Cartridge DTL |
| Capacity | 5 ml / TPD version 2 ml |
| Filling system | Side filling |
| Airflow | Adjustable top airflow |
| Coil platform | New generation PnP X coil only |
| Charging | USB Type-C, 5V/2A |

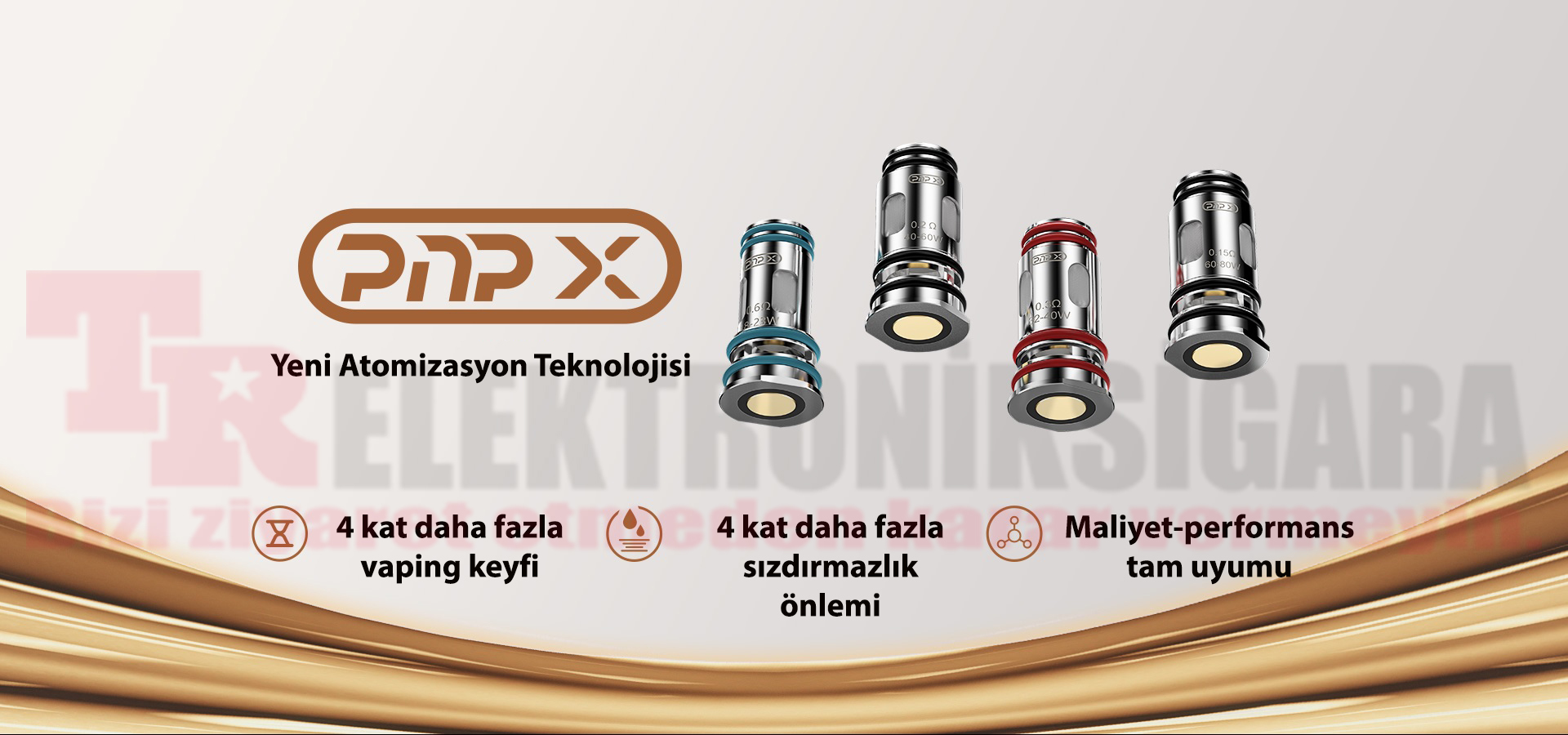

PnP X Coil Options
The DTL cartridge included in the kit comes with 0.15Ω and 0.3Ω coils as standard. Other PnP X coil options can be chosen separately based on vaping style and cartridge type.
| PnP X coil | Power range | Vaping style | Status |
|---|---|---|---|
| 0.15Ω | 60–80W | DTL | Pre-installed |
| 0.2Ω | 40–60W | DTL | Sold separately |
| 0.3Ω | 32–40W | RDL / DTL | In the box |
| 0.45Ω | 25–32W | RDL | Sold separately |
| 0.6Ω | 18–23W | MTL / RDL | Sold separately |
| 0.8Ω | 12–16W | MTL | Sold separately |
| 1.0Ω | 10–13W | MTL | Sold separately |

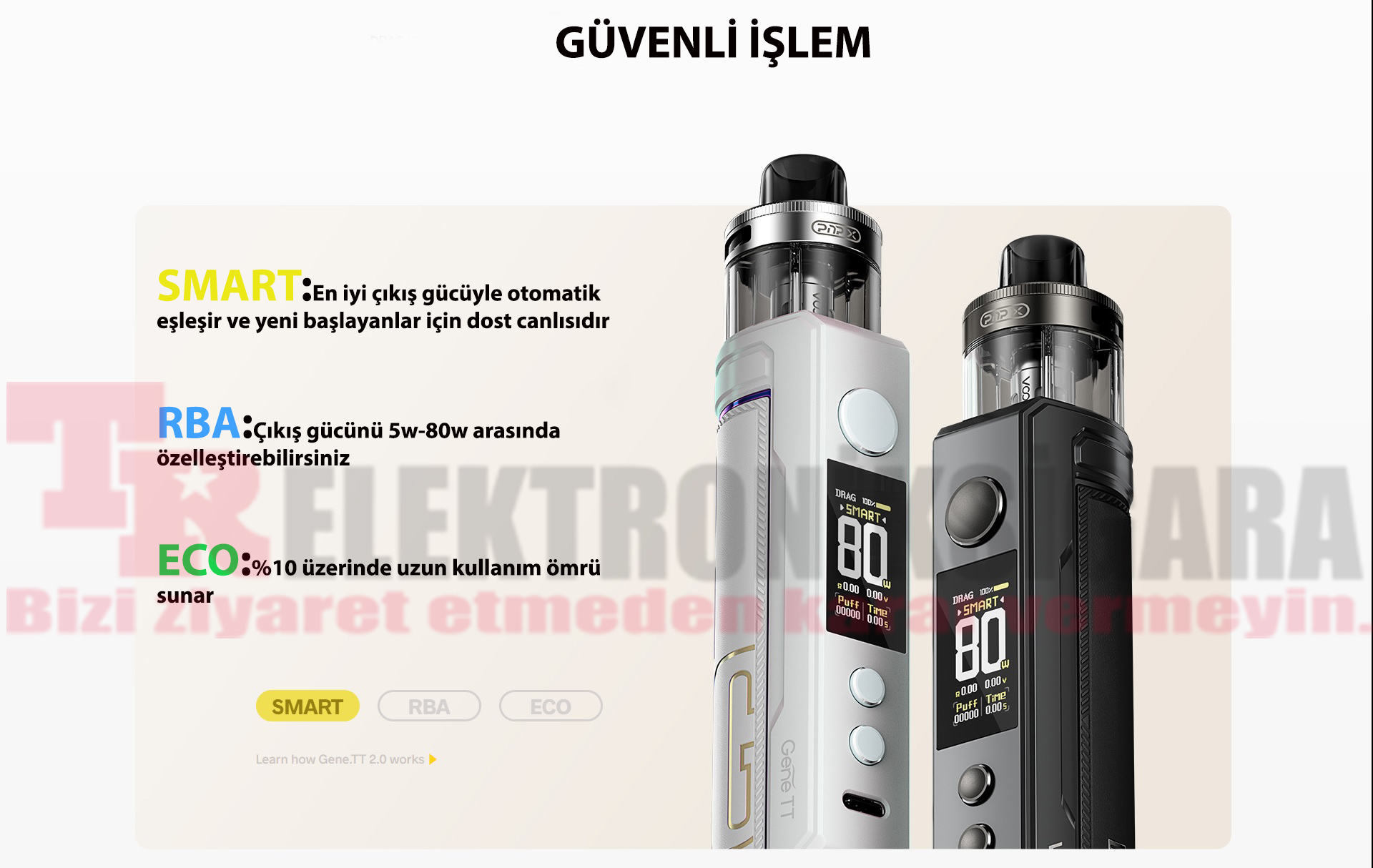

Smart, RBA, and ECO Modes
Detects the installed coil resistance to help select an appropriate power level.
Offers the freedom to manually adjust power between 5–80W. Coil limits must be respected.
Optimizes output to help extend battery usage time.

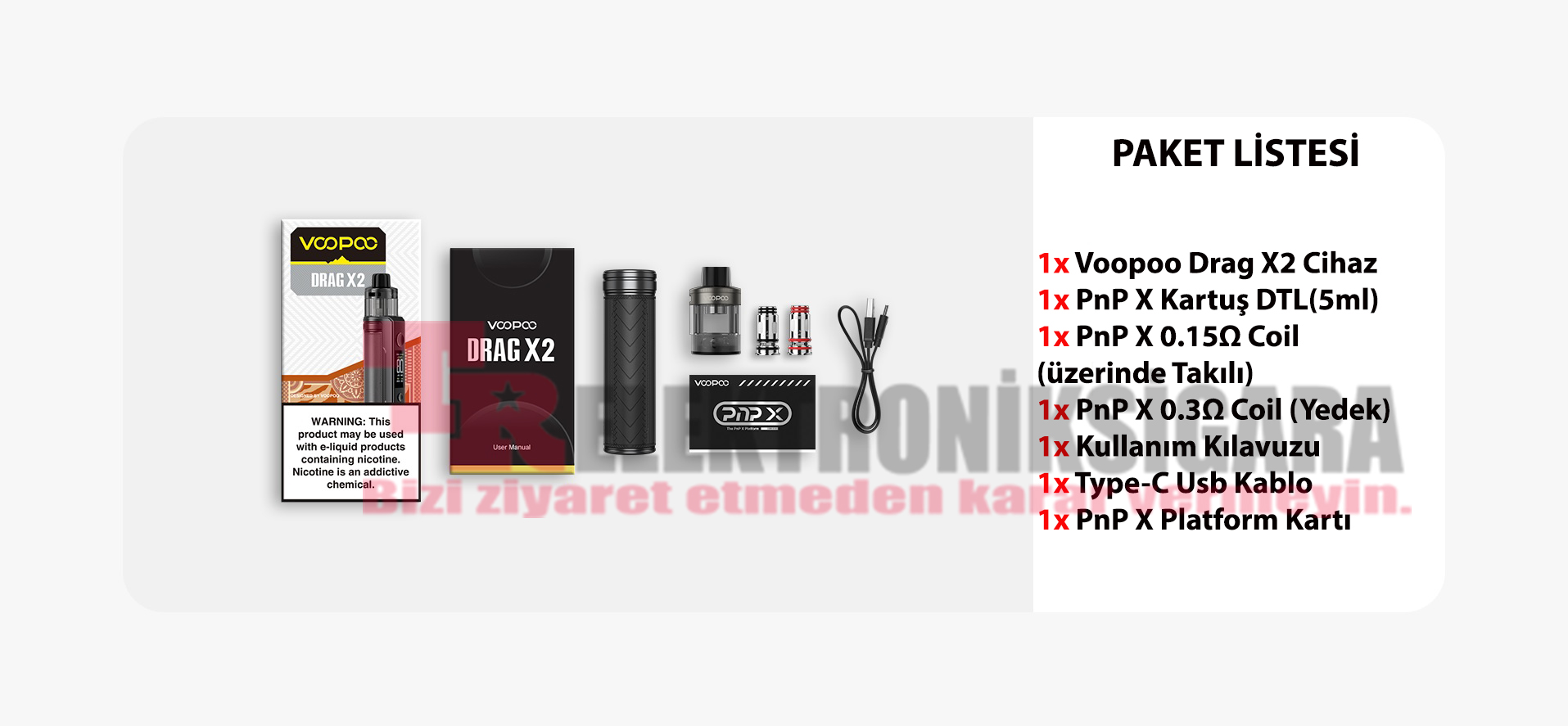

Package Contents
First Use
Electronic Safety Protections

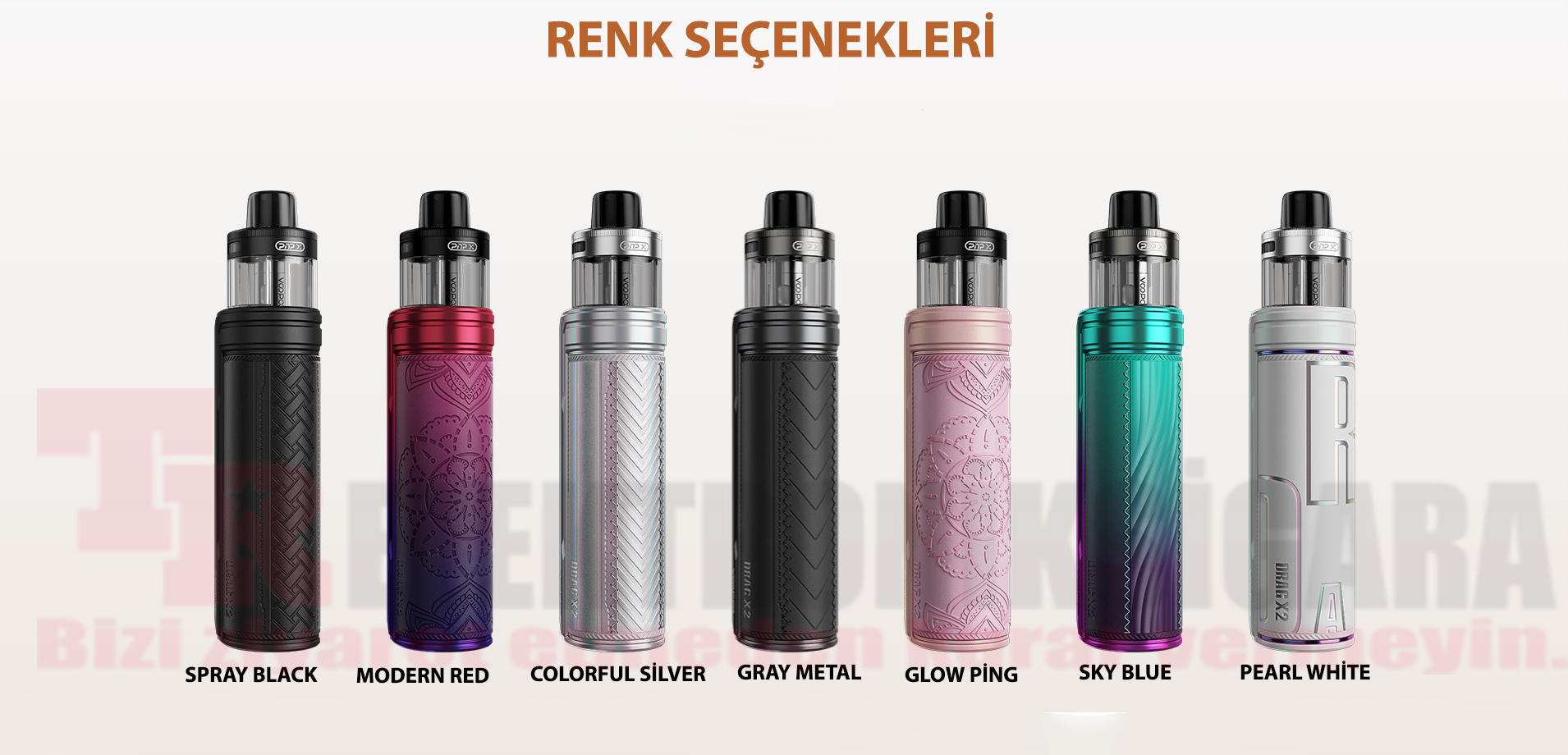

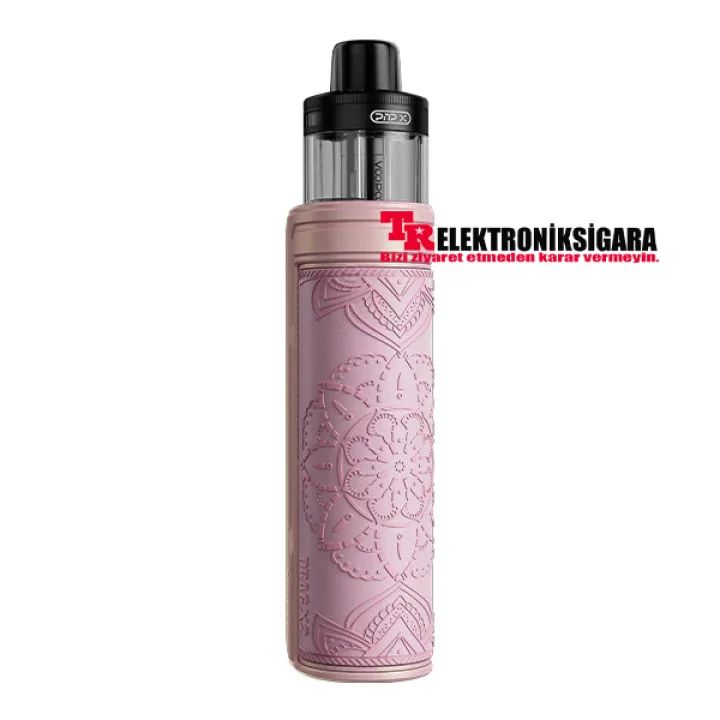

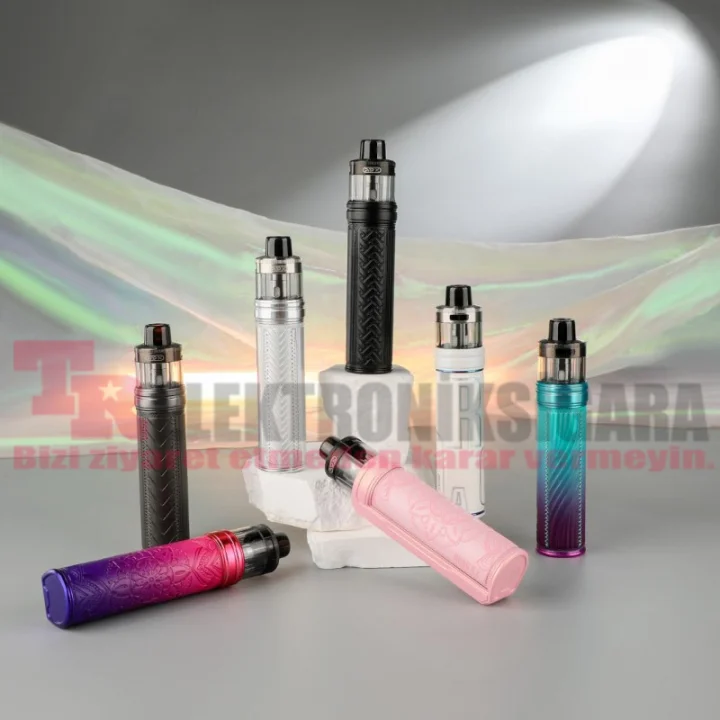

Color Options

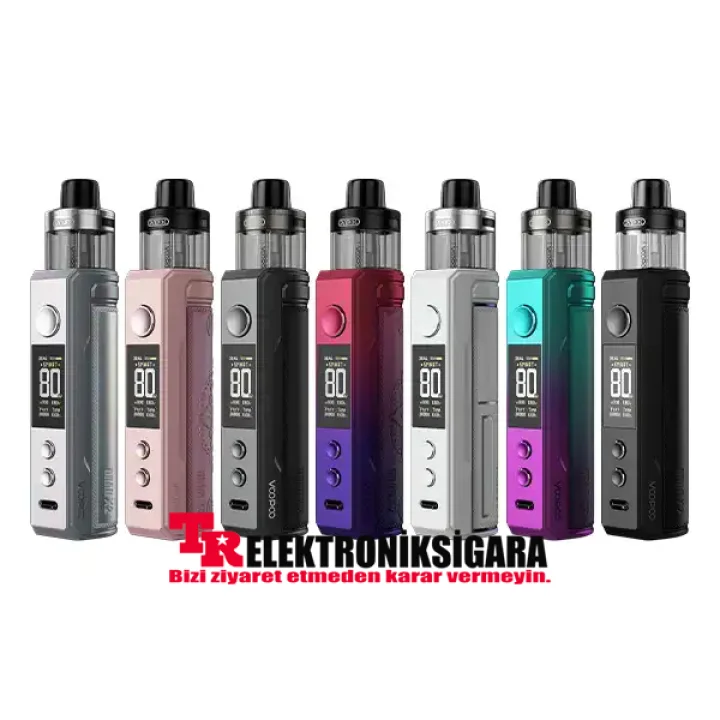

Sky Blue, Modern Red, Glow Pink, Gray Metal, Spray Black, Colorful Silver, and Pearl White.
Frequently Asked Questions
No. The Drag X2 exclusively uses the new generation PnP X coil platform. Standard PnP, PnP-VM, and older PnP-X Pod coils are not compatible.
No. The device operates on a single external 18650 battery, which must be purchased separately.
No. The 100 ml value is VOOPOO's laboratory test result. Actual coil lifespan varies depending on e-liquid type, wattage, usage frequency, airflow adjustment, and priming method.
The cartridge and coils included in the box are intended for DTL/RDL vaping. For MTL use, a high-resistance PnP X coil and a compatible PnP X MTL cartridge should be chosen.
It detects the installed coil resistance to assist in selecting an appropriate power level. The wattage limits specified on the coil should still be verified.
