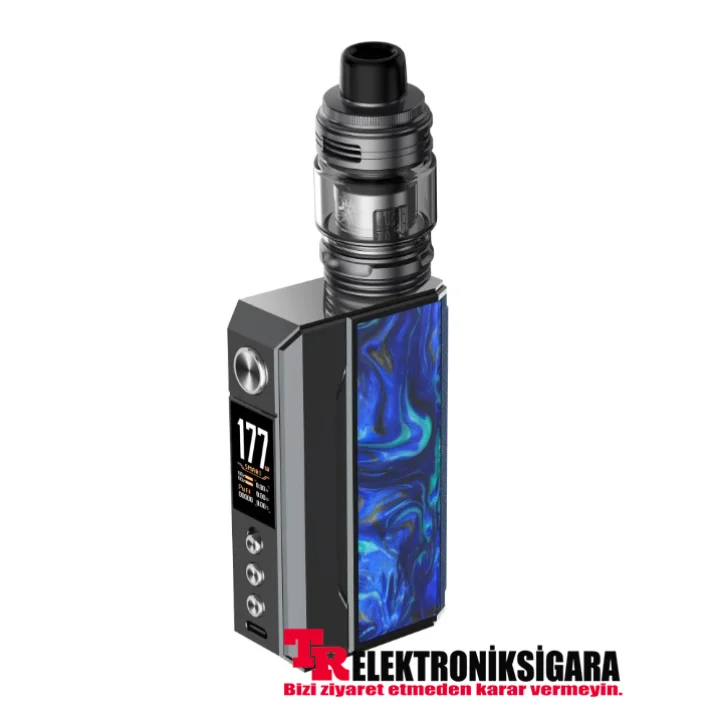

VOOPOO Drag 4 Box Kit 177W

Dual 18650 batteries • GENE.TT 2.0 • UFORCE-L Tank • PnP coil platform

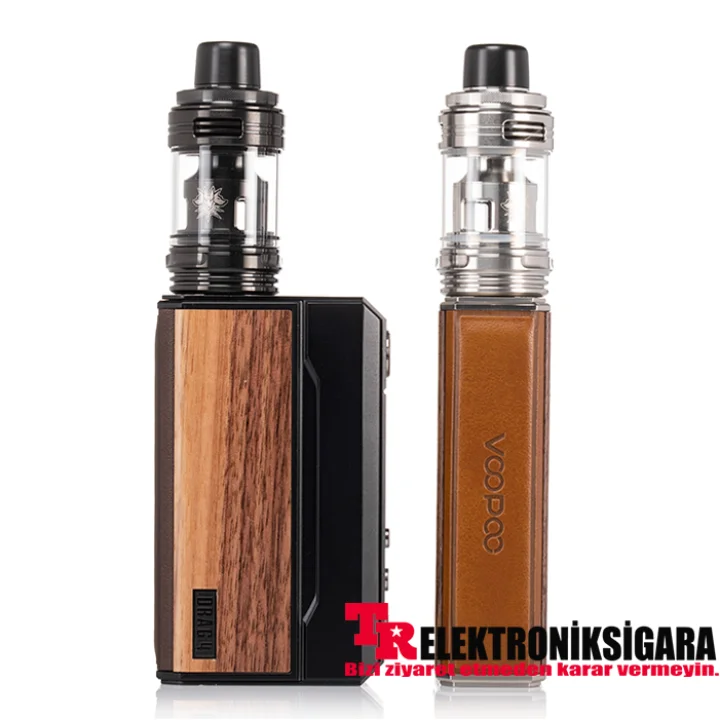

The VOOPOO Drag 4 Kit is a dual-battery electronic cigarette set that combines the classic Drag series design with natural wood or resin panels, a leather finish, and the powerful GENE.TT 2.0 chipset.

Powered by two external 18650 batteries, the device offers an adjustable power output between 5W and 177W. With SMART, RBA, ECO, and temperature control modes, it is possible to customize the usage style according to the installed atomizer and coil structure.

The UFORCE-L Tank, included in the set, offers DTL, RDL, and—when using suitable coils—more restricted vaping options thanks to its leak-resistant top airflow, three-channel air intake, top-fill design, and wide VOOPOO PnP coil compatibility.

The device runs on two external 18650 batteries. Batteries are not included in the package.

VOOPOO PnP Spare Coils

VOOPOO Drag 4 Highlighted Features

177W

Maximum output power

2 × 18650

External battery system

GENE.TT 2.0

Fast and stable chipset

UFORCE-L

Top airflow tank

Main Features

Adjustable power output between 5–177W
Powered by dual external 18650 batteries
Next-generation GENE.TT 2.0 chipset
SMART, RBA, ECO, and TC operating modes
Configurable multi-function QS lock switch
5V/3A USB Type-C charging support
Six different UI color themes
C-frame designed magnetic battery cover
Leather, zinc alloy, and wood or resin panel options
Universal 510 atomizer connection
Multiple safety protections specified by the manufacturer

Operating Modes

SMART Mode

Detects the installed coil resistance and helps determine the appropriate wattage range.

RBA Mode

Allows for free adjustment of wattage within the limits supported by the device.

ECO Mode

Helps reduce energy consumption. The device suggests ECO mode when battery level drops to 20%.

TC Mode

Provides temperature-controlled usage with Ni200, titanium, and compatible stainless steel wires.

Multi-function QS Lock Switch

The physical QS switch on the Drag 4 can be assigned different functions via the device menu. It can be used to lock the wattage, lock the device entirely, or as an on/off switch.

Drag 4 Mod Technical Specifications

Size	52.4 × 25.4 × 89 mm
Material	Leather, zinc alloy, and wood or resin panel
Chipset	GENE.TT 2.0
Output power	5–177W
Output voltage	3.2–8.4V
Resistance range	0.05–3.0Ω
Operating modes	SMART, RBA, ECO and TC
Battery	2 × external 18650 battery – not included
Charging	USB Type-C, 5V/3A
Atomizer connection	510

UFORCE-L Tank Features

The UFORCE-L Tank utilizes a three-way adjustable top airflow system. While the top air channels help reduce the risk of e-liquid leakage, the wide air intake ensures a balanced and quieter draw, especially in DTL usages.

Tank name	VOOPOO UFORCE-L Tank
Size	25.5 × 58 mm
Capacity	5.5ml bubble glass / 2ml TPD
Material	Stainless steel and Pyrex glass
Filling system	Top-fill system
Airflow	Adjustable three-channel top airflow
Coil system	VOOPOO PnP and PnP-RBA
Included coils	PnP-TW20 0.2Ω and PnP-TW15 0.15Ω

Heat Sink Design

The heat dissipation structure of the tank helps slow down heat accumulation in the mouthpiece and vapor section during high-wattage use. The perceived temperature may vary depending on the coil, wattage, airflow setting, and puff frequency.

UFORCE-L Compatible PnP Coils

The UFORCE-L Tank works with the older generation VOOPOO PnP coil platform. The new PnP X coils have a different structure and do not fit this tank.

Coil	Resistance	Power range	Vaping style	Status
PnP-TW15	0.15Ω	55–70W	DTL	In the package
PnP-TW20	0.2Ω	40–55W	DTL	In the package
PnP-TW30	0.3Ω	28–36W	RDL	Compatible
PnP-VM1	0.3Ω	32–40W	DTL	Compatible
PnP-VM3	0.45Ω	25–32W	RDL	Compatible
PnP-VM4	0.6Ω	20–28W	RDL	Compatible
PnP-VM5	0.2Ω	40–60W	DTL	Compatible
PnP-VM6	0.15Ω	60–80W	DTL	Compatible
PnP-TM1	0.6Ω	20–25W	MTL	Compatible
PnP-TM2	0.8Ω	12–18W	MTL	Compatible
PnP-TR1	1.2Ω	10–15W	MTL	Compatible
PnP-RBA	User Build	Depends on build	MTL / RDL	Compatible

Important: Use the recommended wattage range printed on the coil. Low-resistance TW15, TW20, VM5, and VM6 coils are focused on dense vapor. Although MTL coils physically fit the tank, due to the wide structure and airflow system of the UFORCE-L, the best performance is primarily obtained in DTL and RDL use.

VOOPOO Drag 4 UFORCE-L tank and PnP coil features

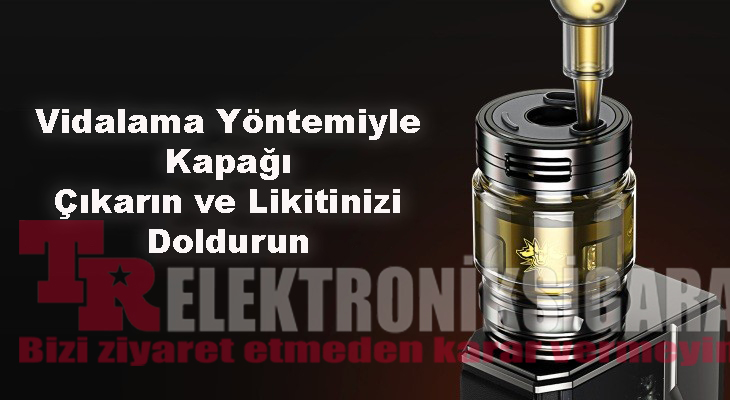

UFORCE-L Tank E-liquid Filling

Unscrew the top cap of the tank to remove it.
Fill with e-liquid through the designated filling channel.
Take care not to spill liquid into the center airflow channel.
Replace the top cap and close it completely.
If using a new coil, wait for 10–15 minutes before firing.
Adjust the airflow according to the used coil and preferred draw intensity.

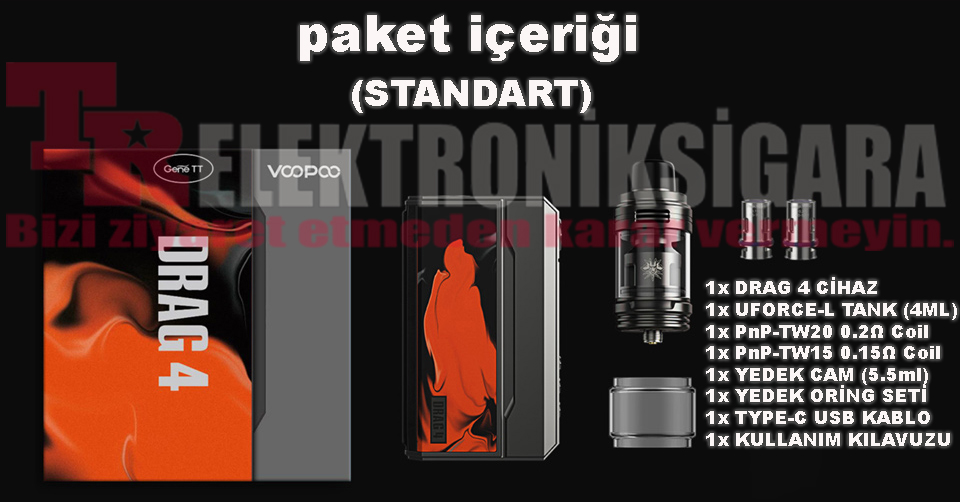

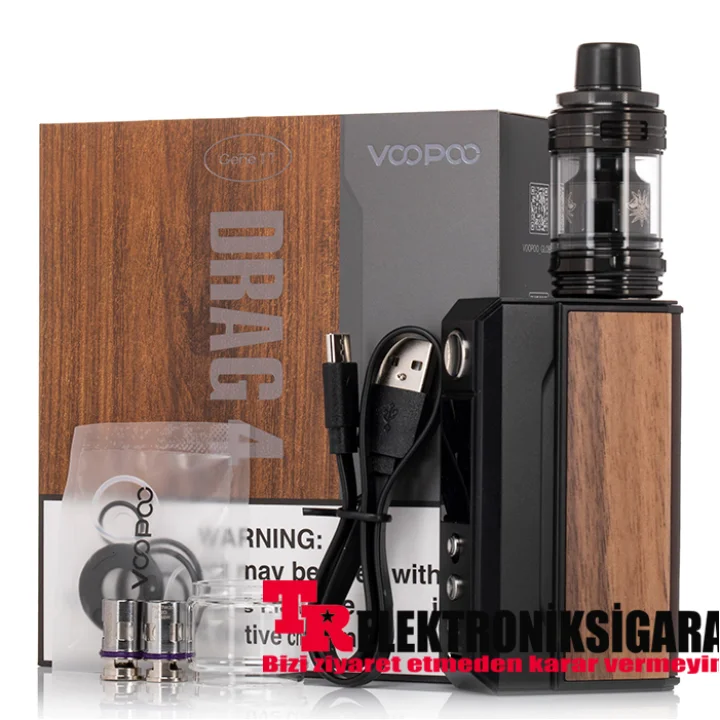

Package Content

1 × VOOPOO Drag 4 Mod

1 × VOOPOO UFORCE-L Tank

1 × PnP-TW20 0.2Ω Coil – 40–55W

1 × PnP-TW15 0.15Ω Coil – 55–70W

1 × 5.5ml Bubble Spare Glass

1 × Silicone and Spare O-ring Pack

1 × USB Type-C Cable

1 × User Manual

Tank glass and capacity may vary depending on the regional package version. Standard packages may contain 5.5ml bubble glass, some older or regional packages may contain 4ml straight glass, while TPD versions may contain 2ml straight glass.

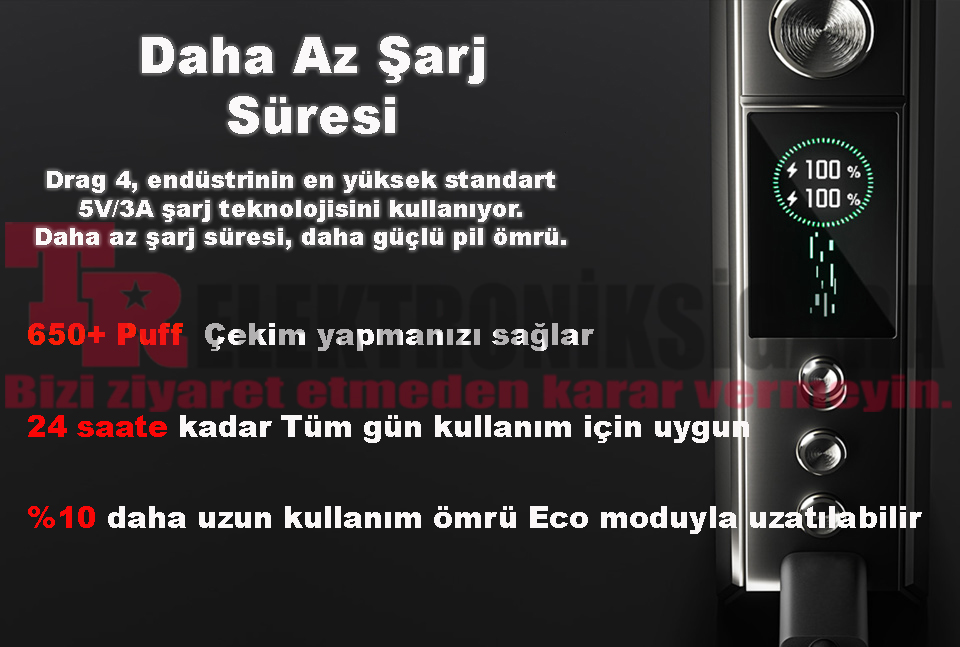

VOOPOO Drag 4 ECO mode and battery usage

Battery Usage and Charging

Use two high-discharge 18650 batteries of the same brand, model, capacity, and usage history.
Do not use old and new batteries, or batteries with different specifications, together.
Do not use batteries with torn wrappers, dents, or damage.
Start using the batteries together, charge them together, and keep them as a set.
Using a high-quality external battery charger is recommended as the safest and most balanced charging method.
If charging via the device, use a high-quality Type-C cable and a USB power source compatible with the technical specifications.
Do not leave the device unattended during charging.

18650 batteries are not included in the package. Two compatible batteries must be purchased separately for the device to function.

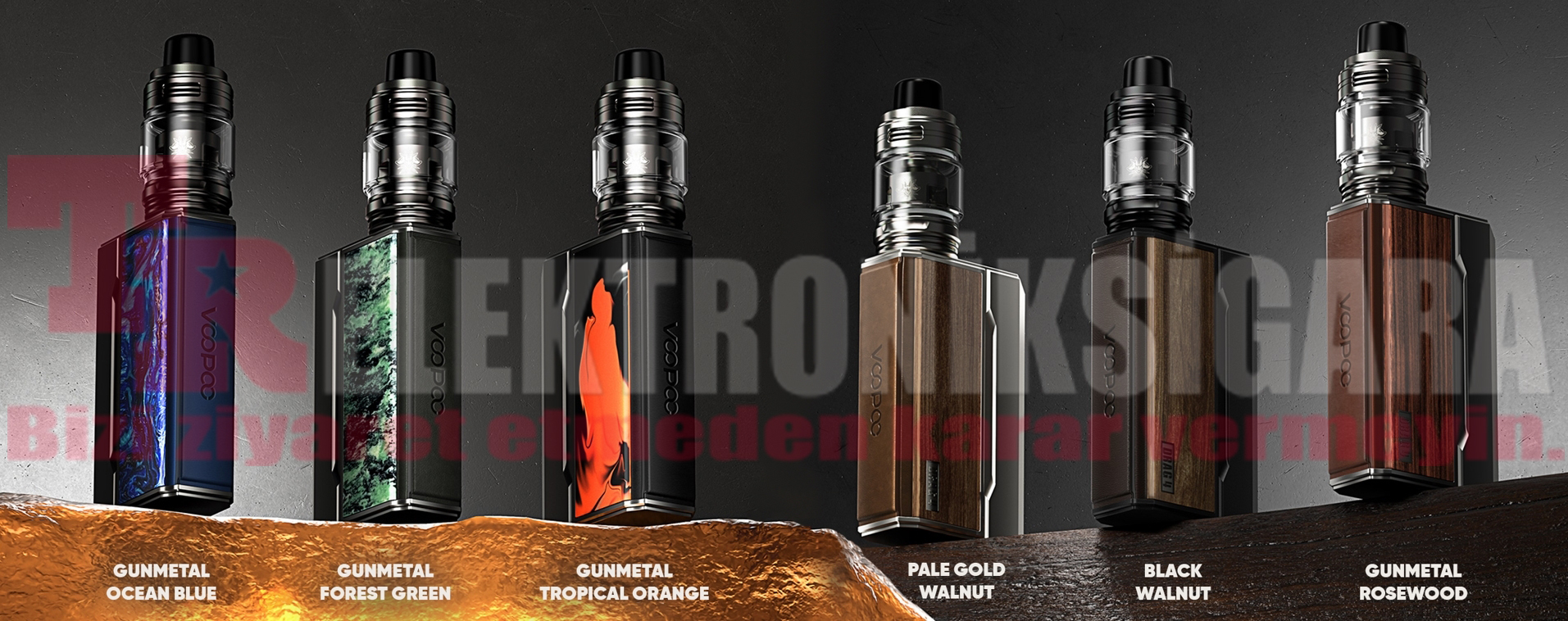

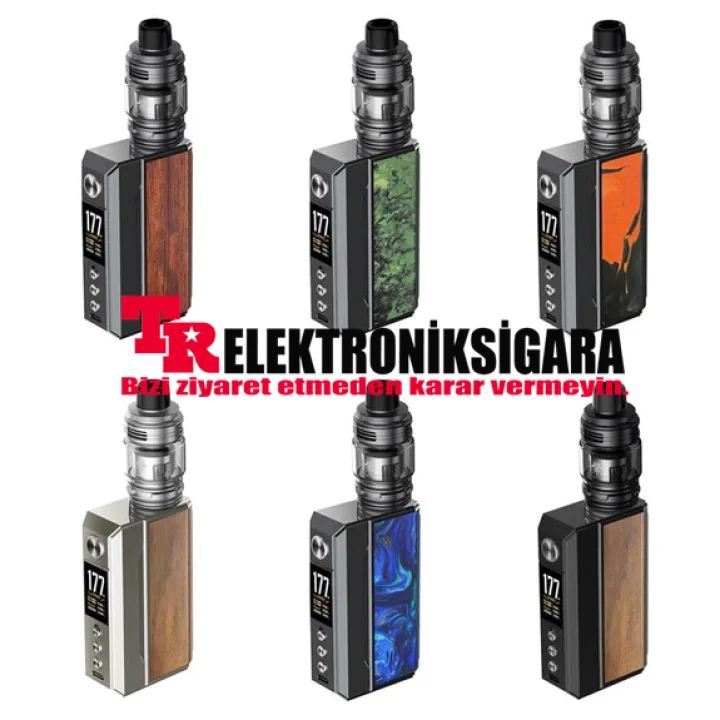

Color Options

Pale Gold & Walnut, Black & Walnut, Gun Metal & Rosewood, Gun Metal & Ocean Blue, Gun Metal & Forest Green, and Gun Metal & Tropical Orange

Frequently Asked Questions

Are batteries included in the Drag 4 package?
No. Two compatible 18650 batteries must be purchased separately for the device.

What coils does the UFORCE-L Tank use?
The tank is compatible with VOOPOO's old-generation PnP coil family and the PnP-RBA.

Can PnP X coils be installed?
No. PnP X is a next-generation platform with a different physical structure and is not compatible with the UFORCE-L Tank.

When can ECO mode be used?
ECO mode can be selected from the menu at any time. When the battery level drops to 20%, the device also displays the ECO mode option on the screen.

Is the tank completely leak-proof?
The top airflow and tank structure reduce the risk of leakage; however, no refillable tank should be considered completely leak-proof.

177W power and wide PnP coil compatibility

VOOPOO Drag 4 offers powerful and customizable usage with its dual battery system, GENE.TT 2.0 chipset, UFORCE-L Tank, and wide adjustment options.

This product is for adult users only. Products containing nicotine can be addictive.
